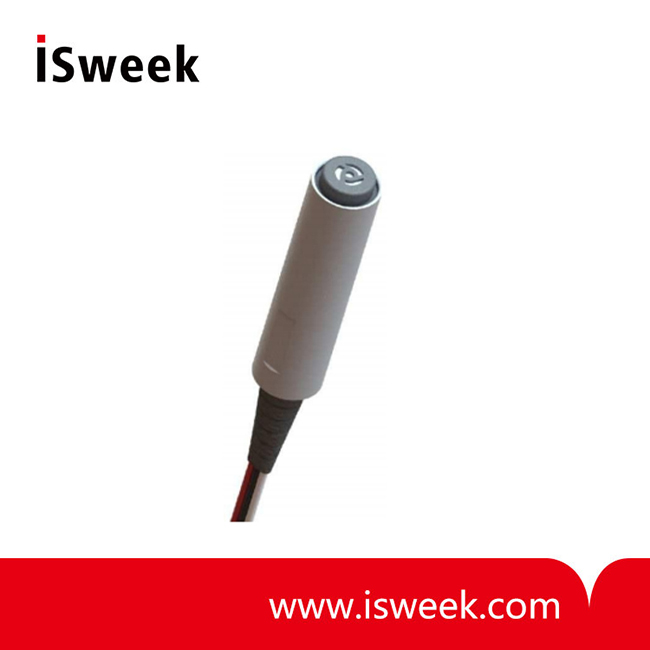

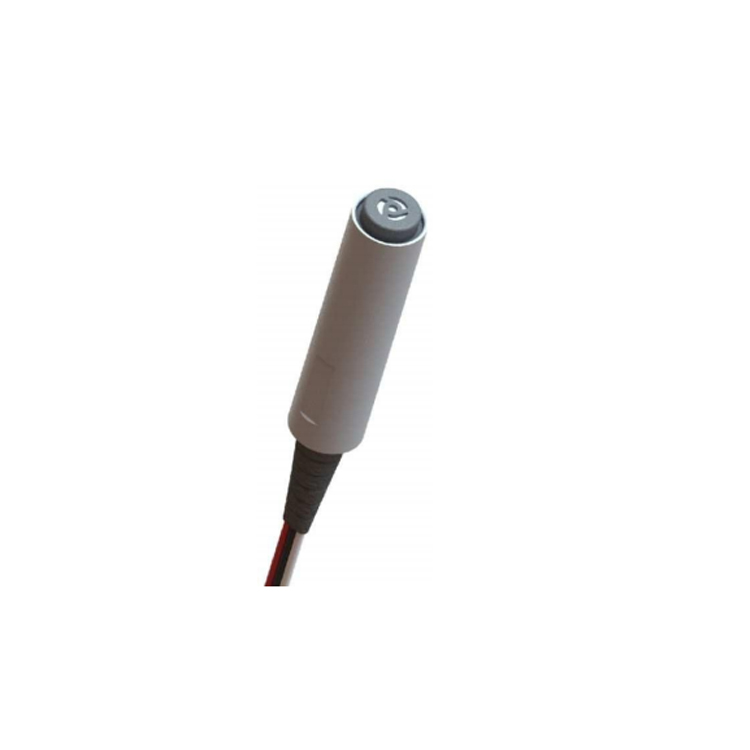

Korea Samyoung Relative Humidity Module - HW2200
Full interchangeability
High reliability and long term stability
Waterproof design(IP67)
- Model Number: HW2200
- Data Sheet:
- Quantity:
- - +
Product Specification
Korea Samyoung Relative Humidity Module HW2200 Description：
Based on the capacitive polymer RH Sensor developed by Samyoung S&C, HW2200 is a dedicated humidity transducer designed for OEM applications where a
reliable and accurate measurement is needed.?
Direct interface with a micro-controller is made possible with the module’s linear voltage output
Korea Samyoung Relative Humidity Module?HW2200??Specifications：
Small size product · Product free from Lead, Cr(6+), Cd and Hg
Humidity calibrated within +/-3% @55%RH
Typical 1 to 3.6 Volt DC output for 0 to 100% RH at 5Vdc supply
Ratiometric to voltage supply from 4.75Vdc to 5Vdc
Korea Samyoung Relative Humidity Module?HW2200??Applications：

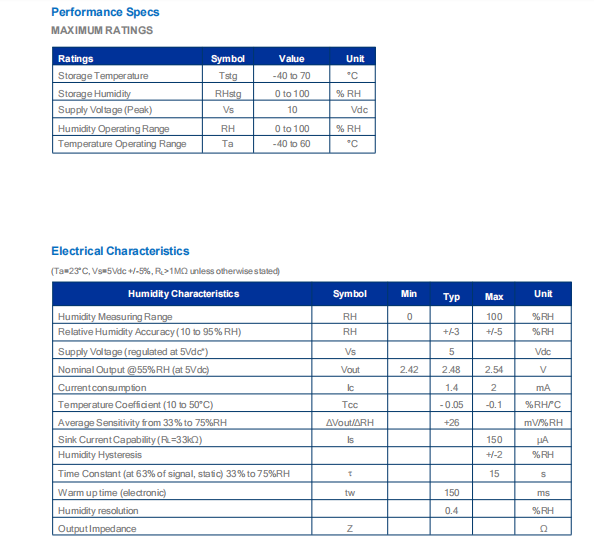

Korea Samyoung Relative Humidity Module?HW2200??Performance Specs：
