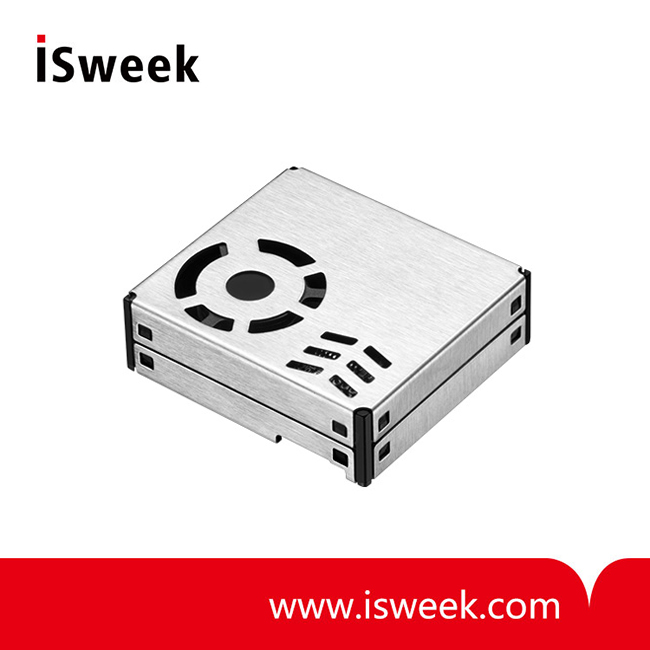

Laser Particulate Matter Sensor - MPM10 series

MPM10 series laser dust sensors adopt the principle of laser scattering, and are small in size. There are 6 products in total. The air inlet and outlet can be selected as required, which can accurately detect the concentration of suspended particles of 0.3~10μm, with high sensitivity and excellent performance.

  • Model Number: MPM10 series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Laser Particulate Matter Sensor
Mouse over image to zoom
Share:

Product Specification

    MPM10 series laser dust sensors adopt the principle of laser scattering, and are small in size. There are 6 products in total. The air inlet and outlet can be selected as required, which can accurately detect the concentration of suspended particles of 0.3~10μm, with high sensitivity and excellent performance.



Product parameters:

Parameters

Indexes

Unit

Particulate matter detection category

PM1.0, PM2.5, PM10



Particle size range of particulate matter

0.3-10

um

Mass concentration range of particulate matter (PM2.5 standard value)

0~1000

μg/m3

Resolution ratio of mass concentration

of particulate matter

1

μg/m3

Ma ss c o n c e n tr a ti o n c o n sist e n c y o f particulate matter (PM2.5 standard value) * note

±10%(@100 ~ 500μg/m3)

±10μg/m3 (@ 0 ~100μg/m3)



Single response time

≤1

s

Comprehensive response time

≤10

s

DC supply voltage

5.0

V

Working current

≤85

mA

Standby current

≤45

μA

Output mode

UART / IIC / PWM



Storage temperature

-30~+70

℃

Operating temperature range

-10~+60

℃

Operating humidity range

0-95%RH (without condensation)



Mean free error time

≥3

Y

Boundary dimension

37 . 8*34 . 8*11.8mm(L×W×H)

mm

Notes: Concentration consistency data of particulate matter are the data 2 in communication protocol (test condition: 25±2℃ and 50±10%RH).
