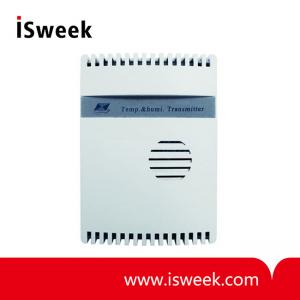

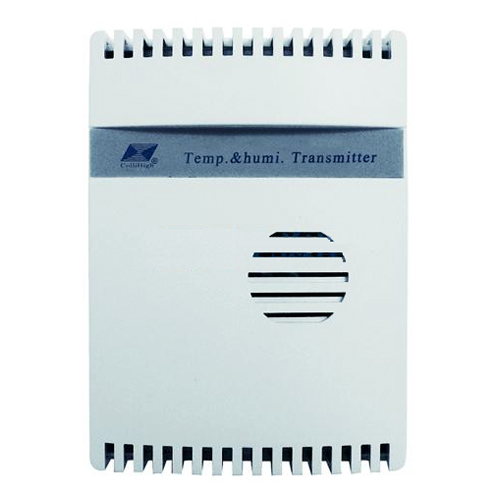

Low Cost and Small Cubage Temperature and Humidity Transmitter - JWSL-1

? Power voltage: 24VDC (18-30V)
? ±0.5°C and ±3.0%RH accuracy
? 4-20mA outputs
? Response time: <15s
? Operating temperature: -10°C~60°C
? Operating humidity: 5%RH~95%RH
? CE certification

Model Number: JWSL-1
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JWSL-1 Temperature and Humidity Transmitter Introduction
The series is designed sensor and transmitter integrated, which can applied to the general indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. It also has reliable performance, long service life and fast response speed.

JWSL-1 Temperature and Humidity Transmitter Use
The model JWSL-1 series product is a temperature and humidity transmitter with low cost and small cubage. It convert the temperature and humidity of indoor air to stand electrical signals (e.g. 4-20mA, 0-5VDC) for auto control system or remote data acquisition system. It's extensively used for fields such as smart building, telecommunication, electric power, petrifaction, environmental protection, papermaking, metallurgy, foodstuff, medical treatment etc.

JWSL-1 Temperature and Humidity Transmitter Characteristic
? Low cost and small cubage
? ±0.5°C and ±3.0%RH accuracy
? 4-20mA outputs
? CE certification

JWSL-1 Temperature and Humidity Transmitter Performance Specifications

Power voltage	24VDC (18-30V)
Accuracy (25°C)	Temperature: ±0.5°C (0°C - 50°C) Humidity: ±3.0%RH

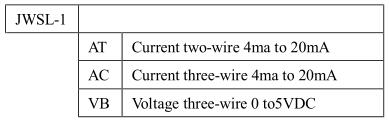

Output	Current two-wire 4 to 20mA (Load < 500Ω); Voltage 0-5VDC (Load > 1KΩ)
Response time	<15s (wind speed >1m/s)
Long-term stability	Temperature: <0.1°C/year Humidity: <1%RH/year
Operating environment	-10°C ~ 60°C; 5%RH ~ 95%RH
Mounting dimension	90mm x 65mm x 20mm (White Color ABS)
