LV-MaxSonar-EZ0 High Performance Ultrasonic Rangefinder - MB1000

Product Specification

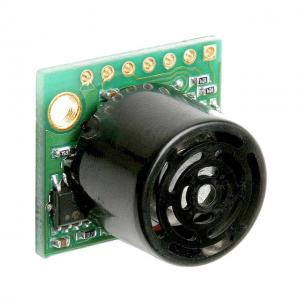

MB1000 LV-MaxSonar-EZ0
High Performance Ultrasonic Rangefinder

MB1000 LV-MaxSonar-EZ0 Ultrasonic Rangefinder Product Description
The LV?MaxSonar?EZ0 has the widest and most sensitive beam pattern of any unit from LV?MaxSonar?EZ sensor line. This makes the LV?MaxSonar?EZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.

MB1000 LV-MaxSonar-EZ0 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 inch
? 20Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
? Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
? Maximum Range of 254 inches (645 cm)
? Operates from 2.5-5.5V
? Low 2.0mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Widest beam of the LV-MaxSonar-EZ sensors
? Great for people detection applications

MB1000 LV-MaxSonar-EZ0 Ultrasonic Rangefinder Features and Benefits
? Widest and most sensitive beam pattern in LV-MaxSonar-EZ line
? Low power consumption
? Easy to use interface
? Will pick up the most noise clutter when compared to other sensors in the LV-MaxSonar-EZ line
? Detects smaller objects
? Best sensor to detect soft object in LV-MaxSonar-EZ line
? Requires use of less sensors to cover a given area
? Can be powered by many different types of power sources
? Can detect people up to approximately 10 feet

MB1000 LV-MaxSonar-EZ0 Ultrasonic Rangefinder Applications and Uses
? Great for people detection
? Security
? Motion detection
? Used with battery power
? Autonomous navigation
? Educational and hobby robotics
? Collision avoidance

MB1000 LV-MaxSonar-EZ0 Ultrasonic Rangefinder Part Numbers

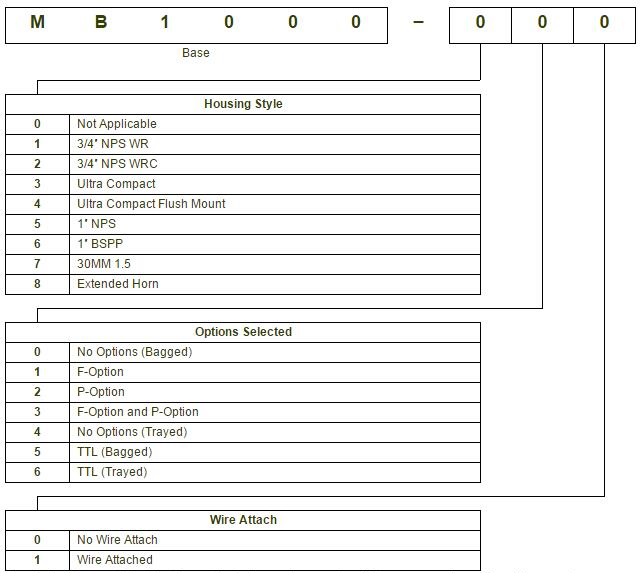

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

The following table displays all of the active and valid part numbers for this product.
