XL-MaxSonar-WR Series Ultrasonic Sensor MB7051, MB7052, MB7060, MB7062, MB7070 - MB7072, MB7076, MB7092

Product Specification

XL-MaxSonar-WR/WRC Series
High Performance, IP67 Weather Resistant, Ultrasonic Range Finder
MB7051, MB7052, MB7060, MB7062, MB7066, MB7067, MB7068,
MB7070, MB7072, MB7076, MB7077, MB7078, MB7092

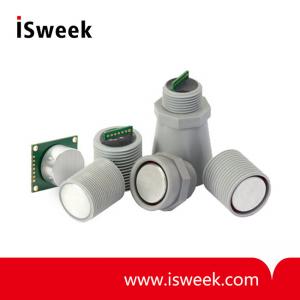

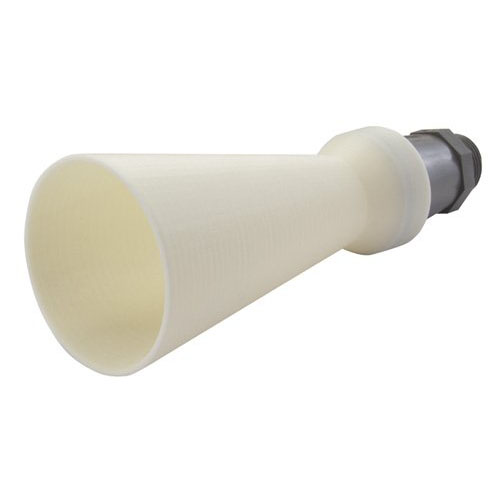

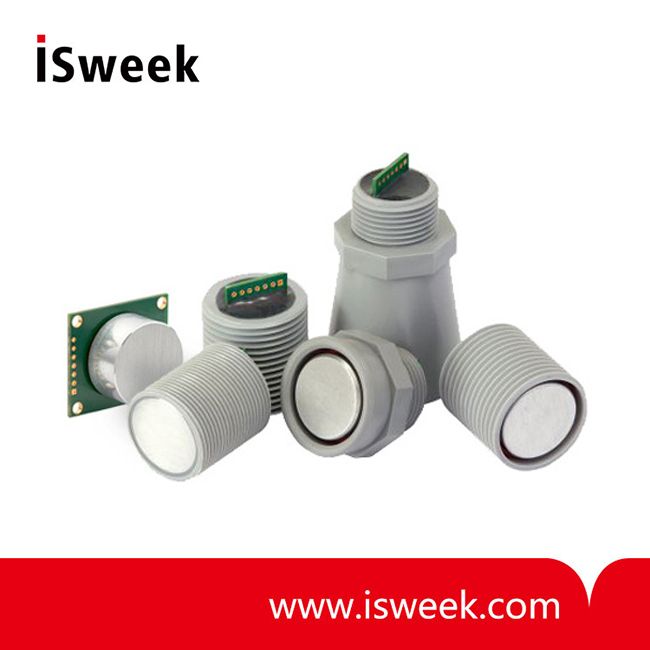

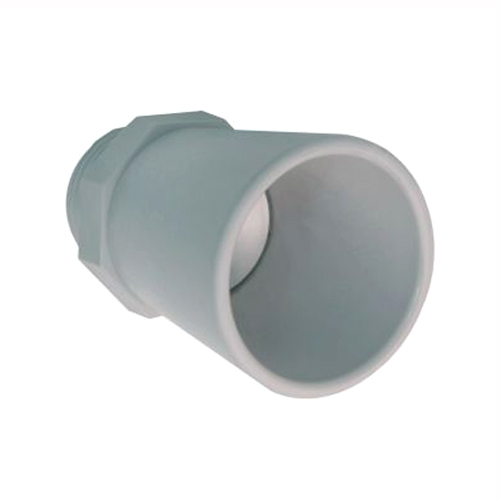

XL-MaxSonar-WR Series Ultrasonic Sensor Product Description
The XL-MaxSonar-WR and XL-MaxSonar-WRC sensor series provide users with robust range information in air. These sensors also feature high-power acoustic output along with real-time auto calibration for changing conditions (supply voltage sag, acoustic noise, or electrical noise), operation with supply voltage from 3V to 5.5V, object detection from 0-cm to 765-cm (select models) or 1068-cm (select models), and sonar range information from 20-cm 1 out to 765-cm (select models) or 1068-cm (select models) with 1-cm resolution. Objects from 0-cm to 20-cm 1 range as 20-cm 1 or closer. The sensor is housed in a robust PVC housing, designed to meet the IP67 water intrusion standard, and matches standard electrical/water ?" PVC pipe fittings. The user interface formats included are pulse-width (select models), real-time analog-voltage envelope (select models), analog voltage output, and serial output.

XL-MaxSonar-WR Series Ultrasonic Sensor Features
? Real-time auto calibration and noise rejection
? High acoustic power output
? Precise narrow beam
? Object detection includes zero range objects
? 3V to 5.5V supply with very low average current draw
? Free run operation can continually measure and output range information
? 10Hz refresh rate (MB7060, MB7062, MB7066, MB7070, MB7072, MB7076, MB7092)
? 6.6Hz refresh rate (MB7052)
? 5.1Hz refresh rate (MB7051)
? Triggered operation provides the range reading as desired
? All interfaces are active simultaneously
? RS232 Serial, 0 to Vcc, 9600 Baud, 81N
? Analog, (Vcc/1024) / cm for standard models
? Analog, (Vcc/1024) / 2cm for 10-meter models (MB7051, MB7066, MB7076)
? Sensor operates at 42KHz

XL-MaxSonar-WR Series Ultrasonic Sensor Benefits
? Acoustic and electrical noise resistance
? Reliable and stable range data
? Robust, low cost IP67 standard sensor
? Narrow beam characteristics
? Very low power excellent for battery based systems
? Ranging can be triggered externally or internally
? Sensor reports the range reading directly, frees up user processor
? Easy hole mounting or mating withstandard electrical fittings
? Filtering allows very reliable operation in most environments

XL-MaxSonar-WR Series Ultrasonic Sensor Applications and Uses
? Tank level measurement
? Bin level measurement
? Proximity zone detection
? Environments with acoustic and electrical noise
? Distance measuring
? Long range object detection
? Super high sensitivity for long range small object detection (MB7051)
? Industrial sensor -40°C to +65°C (limited operation to +85°C)

XL-MaxSonar-WR Series Ultrasonic Sensor Part Numbers

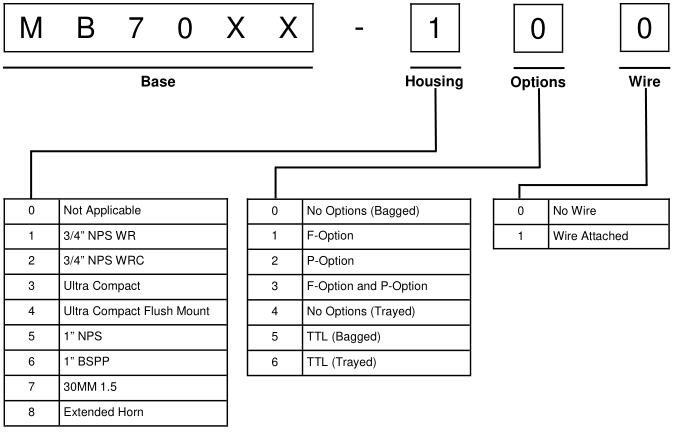

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

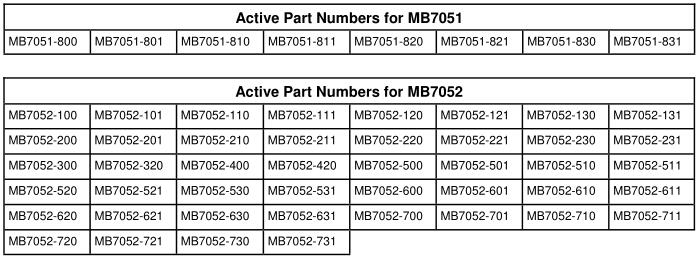

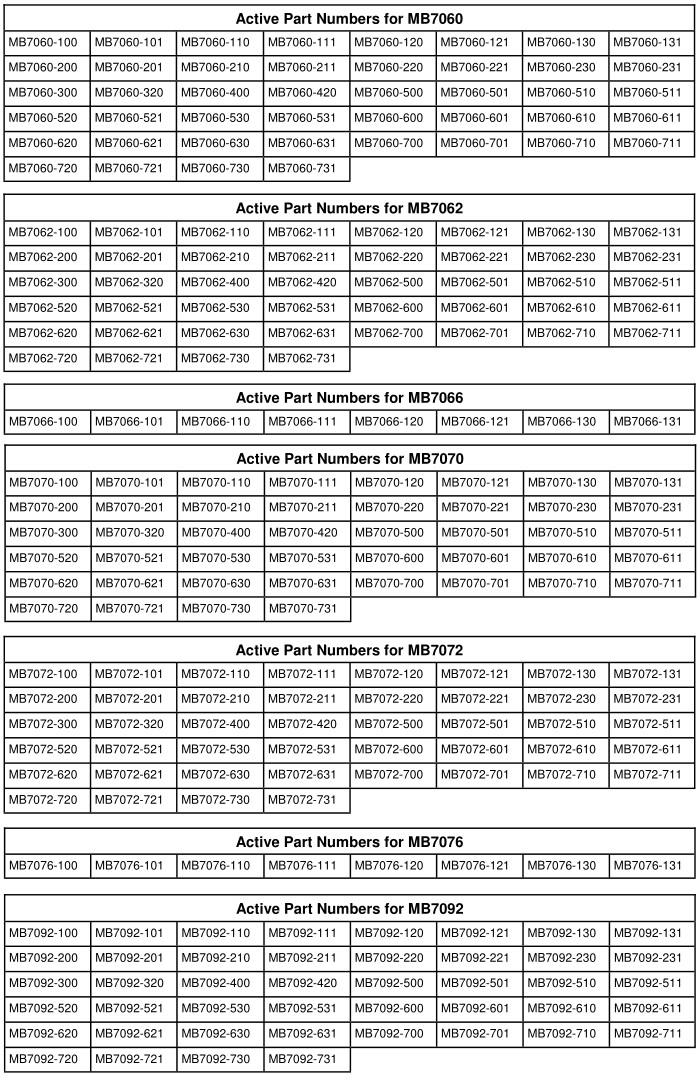

The following tables display all of the active and valid part numbers for these products.

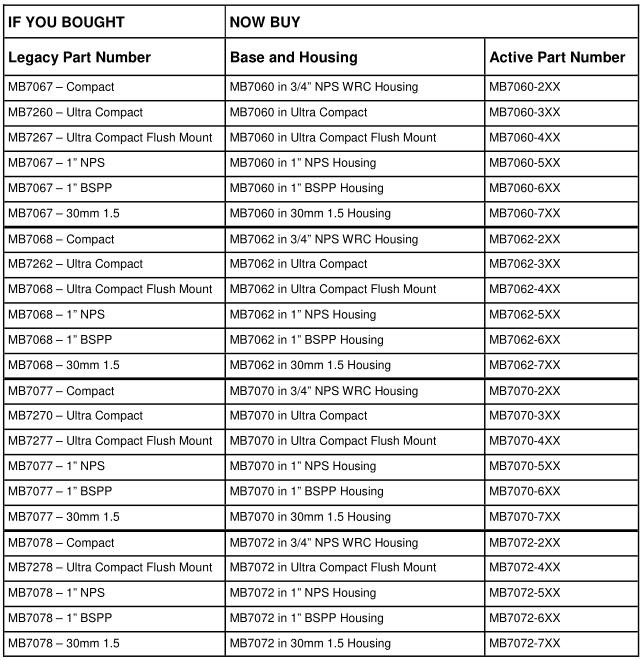

The legacy part numbers MB7067, MB7068, MB7260, MB7262, MB7267, MB7077, MB7078, MB7270, MB7277 and MB7278 are now contained within MB7060, MB7062, MB7070 and MB7072 which are the base for all housing options on these products. To select a product with a legacy part number, select the desired housing option on the product with the appropriate base. Please review the following table for more information.
