ParkSonar-EZ Series Ultrasonic Proximity Sensors MB1001, MB1002, MB1005, MB1006 - MB1007, MB1008, MB1009

Product Specification

ParkSonar-EZ Sensor Series
High Performance Ultrasonic Proximity Parking Sensor
MB1001, MB1002, MB1005, MB1006, MB1007, MB1008, MB1009

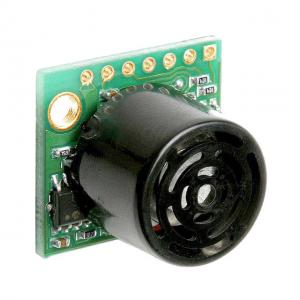

ParkSonar-EZ Series Ultrasonic Proximity Sensors Product Description
The ParkSonar-EZ sensor is a high performance ultrasonic proximity sensor designed for parking garage car detection that allows for simultaneous operation of multiple sensors in one environment. The ParkSonar-EZ sensor, with 2.5V to 5.5V power, provides proximity detection of objects out to a set distance, in an incredibly small package. The ParkSonar-EZ sensor allows users to integrate several sensors into one system and experience little to no effect from the sensor interference than can occur with other ultrasonic sensor solutions. ParkSonar-EZ sensor features an easy to use logic level (high/low) output, and RS232 format serial output.

ParkSonar-EZ Series Ultrasonic Proximity Sensors Features
? Proximity vehicle detection
? Simultaneously runs along side other nearby sensors
? ~10 second object acquire time
? ~5 second object release time
? Range information available on Pin 5 to 254 inches
? 2.5V to 5.5V supply with 2mA typical current draw
? Interfaces are simultaneously active
? Serial, 0 to Vcc, 9600 Baud, 81N
? Digital logic High/Low (True/False) output
? Continuously variable gain for side lobe suppression
? Free run operation continually measures and outputs proximity information
? Sensor operates at 42KHz

ParkSonar-EZ Series Ultrasonic Proximity Sensors Benefits
? Very low-cost proximity sensor
? Simultaneously use up to 14+ sensors in the same environment
? Reliable proximity information
? Sensor doubles as a rangefinder (reports range information over serial)
? Mounting holes provided on the circuit board (or can be grommet mounted)
? Very low power proximity sensor, excellent for multiple sensor or battery based systems
? Continuously gives output which frees up user processors
? User can choose either of the two sensor outputs
? Runs automatically or can be triggered externally
? Fast measurement cycle
? Quality beam characteristics
? Custom object acquire and release times available for a nominal NRE charge
? Lowest power proximity sensor

ParkSonar-EZ Series Ultrasonic Proximity Sensors Applications & Uses
? Parked car detection
? Proximity zone detection
? Sheltered drive thru’s
? Non-condensing environments only
? Designed for protected indoor environments
? Other weather resistant models available

ParkSonar-EZ Series Ultrasonic Proximity Sensors Part Numbers

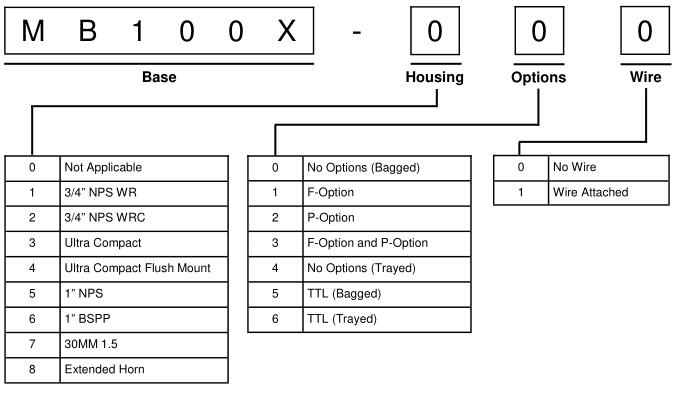

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

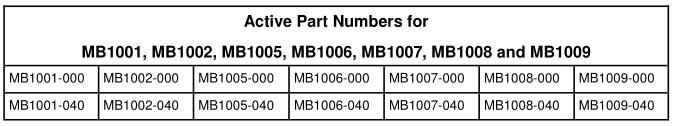

The following table displays all of the active and valid part numbers for this product.
