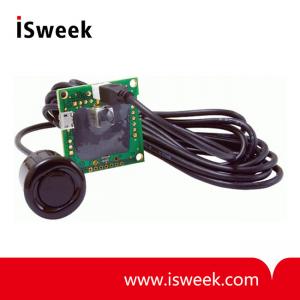

USB-CarSonar-WR USB Ultrasonic Proximity Sensor - MB8450

? USB interface
? Simple True/False output and optional range output
? ~4.0 second object acquire time
? ~5.0 second object release time
? IP67 Rated transducer
? Continually checks and outputs proximity information
? Learns nearby environment
? Sensor operates at 42KHz
? Range data from 50 cm to 500 cm

  • Model Number: MB8450
  • Data Sheet: Date Sheet File
Quantity:
- +
  • USB-CarSonar-WR USB Ultrasonic Proximity Sensor
  • USB-CarSonar-WR USB Ultrasonic Proximity Sensor
Mouse over image to zoom
Share:

Product Specification

MB8450 USB-CarSonar-WR
USB Ultrasonic Proximity Sensor

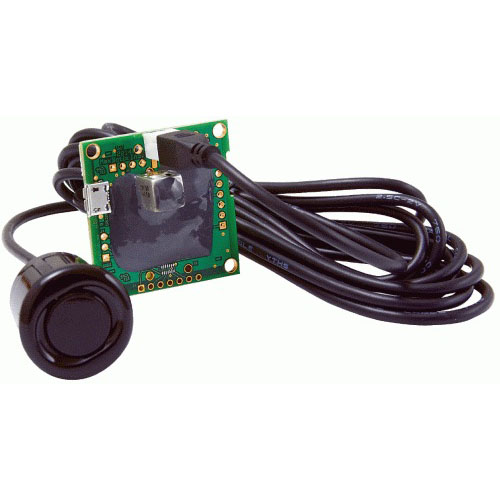

MB8450 USB-CarSonar-WR USB Ultrasonic Proximity Sensor Product Description
The MB8450 USB-CarSonar-WR is a high performance, low-cost USB ultrasonic proximity sensor designed to detect the side of a vehicle in a drive thru. The MB8450 USB-CarSonar-WR features a simultaneous multi sensor design which allows the sensor to operate even in the presence of other ultrasonic sensors. The sensors utilize a USB Micro-B connector for simple interfacing. Users can integrate many sensors into one system with little to no effect from the sensor-to-sensor interference which can occur with other ultrasonic sensor solutions. The MB8450 USB-CarSonar-WR features a True/False output and an optional range output. Deploying a network of ultrasonic sensors is simple and easy with the USB interface.

MB8450 USB-CarSonar-WR USB Ultrasonic Proximity Sensor Features
? USB interface for simple computer connection and installation
? Simple True/False output and optional range output
? ~4.0 second object acquire time
? ~5.0 second object release time
? Filtered proximity output allows for multi-sensor operation
? IP67 Rated transducer
? Continually checks and outputs proximity information
? Learns nearby environment
? Sensor operates at 42KHz
? Range data from 50 cm to 500 cm

MB8450 USB-CarSonar-WR USB Ultrasonic Proximity Sensor Benefits
? USB interface for easy integration
? USB Micro-B connector matches most smartphones
? Easily deploy network-based IT solutions with integrated ultrasonic sensors
? Reliable proximity information
? Sensor is a rangefinder/proximity sensor with a detection zone to the preset range to 150 cm
? Mounting holes provided
? Excellent for multiple sensor systems

MB8450 USB-CarSonar-WR USB Ultrasonic Proximity Sensor Applications & Uses
? Drive thru ATMs
? Drive thru's
? Automated displays and advertising
? Proximity zone detection
? Kiosks and booths
? Multi-sensor arrays
? Car park signs
? Smart parking meters
? Parked car detection

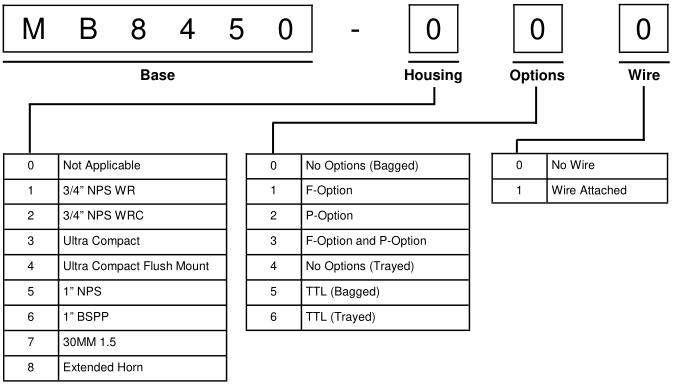

MB8450 USB-CarSonar-WR USB Ultrasonic Proximity Sensor Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.


The following table displays all of the active and valid part numbers for this product.
