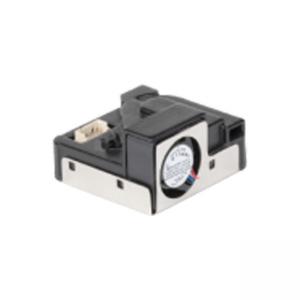

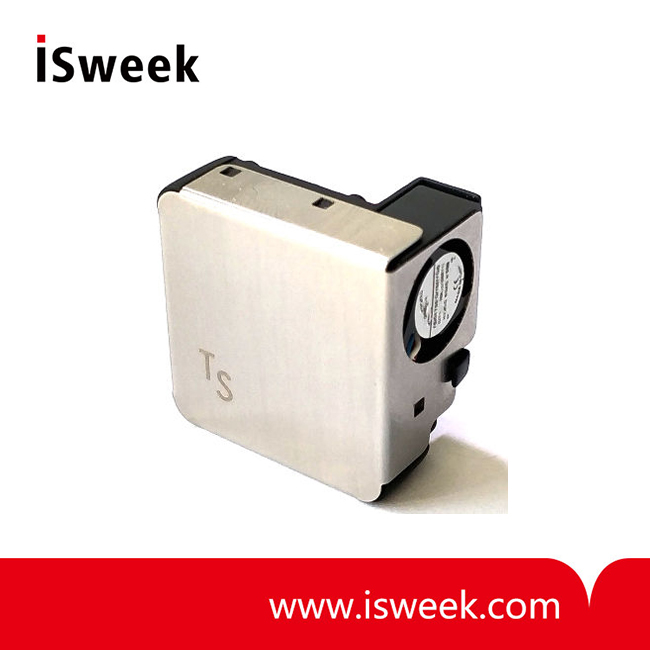

Particulate Matter OEM Sensor - NEXT PM LITE
? Tera Sensor's accuracy
? Durability
? The Smallest
- Model Number: NEXT PM LITE
- Data Sheet:
- Quantity:
- - +
Product Specification
Designed for indoor air quality monitoring and home equipment, Next PM Lite provides real-time measurements of PM1, PM2.5 and PM10 in μg/ m3 and pcs/ L. Next PM Lite is one of the smallest sensors on the market with the most advanced performance.
Advantage：
? Tera Sensor's accuracy
? Durability
? The Smallest
Specifications：
|
GENERAL |
|
|
Particle in μg/m3 & pcs/L |
|
|
Channel 1 |
PM 1 |
|
Channel 2 |
PM 2.5 |
|
Channel 3 |
PM 10 |
|
PERFORMANCE |
|
|
Power |
5V |
|
Power consumption |
<50 mA average |
|
Lifespan (MTTF) |
10 000 hours |
|
OTHER |
|
|
Dimensions |
L 33,5 mm x l 32,6 mm x H 20,3 mm |
|
Protocol |
UART/Modbus - I2C |
|
Acquisition frequency |
Second |
|
Communication option |
Running average 10–60– 900 sec |
|
Operating conditions |
0 to +50℃ not condensed 500 to 1500 hPa |

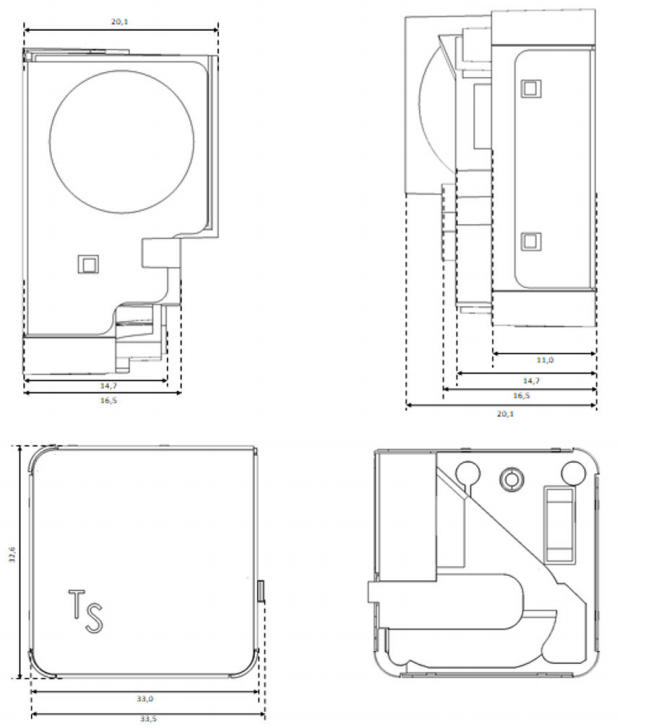

Mechanical Specifications：
