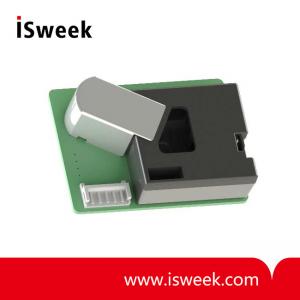

PM2.5 / PM1.0 Sensor - PSML series
? ?PWM Output (Low Pulse Occupancy)
? ?Enhanced Accuracy (LPO)
? ?Precise PM2.5/PM1.0 Level Classification
? ?High Linearity and Uniformity
- Quantity:
- - +
Product Specification
PRODUCT SUMMARY:
PSML Series is PM2.5/PM1.0 dedicated sensor providing uniform performance and enhanced accuracy which assures precise PM2.5/PM1.0 level classification by detecting over 0.3? sized ultra-fine particle through SAMYOUNG S&C’s proprietary optical structure with IrED
FEATURES:
? Minimum Detectable Particle Size - 0.3?
? PWM Output (Low Pulse Occupancy)
? Enhanced Accuracy (LPO)
? Precise PM2.5/PM1.0 Level Classification
? High Linearity and Uniformity
? Market-proven Reliability and Durability
? Pin-to-Pin Compatibility with Existing Sensors
APPLICATION:
? Air Solution Products(Air Purifier, Air Conditioner and etc.) l
? HVAC Control System
? Smart IAQ Device
? Outdoor Particle Sensing Device
Product Specifications:
Ta=25℃
|
Parameter |
Index |
|
Detectable Size |
≥0.3? |
|
Effective Range |
0~500?/m3 |
|
Maximum Range |
0~900?/m3 |
|
Accuracy |
±25%@100~500?/m3 ±2.5(LPO)@0~100?/m3 |
|
Time for Initial Stabilization |
60sec. after powered on |
|
Response Time |
1sec |
|
Supply Voltage |
DC5.0V±10% Ripple 30mV or Less |
|
Current Consumption |
Typ. 85mA |
|
Output Signal |
LPO(Low Pulse Occupancy) |
|
Operating Temperature |
-10~65℃ |
|
Operating Humidity |
<95%RH(Non-Condensing) |
|
Storage Temperature |
-20~80℃ |
|
Storage Humidity |
<95%RH(Non-Condensing) |
|
Dimensions |
59 x 45 x 17mm (W x H x D) |
|
Light Source Life Time |
Min. 5years |
|
Weight |
25g |
