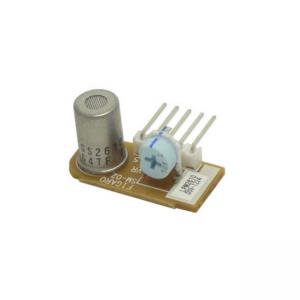

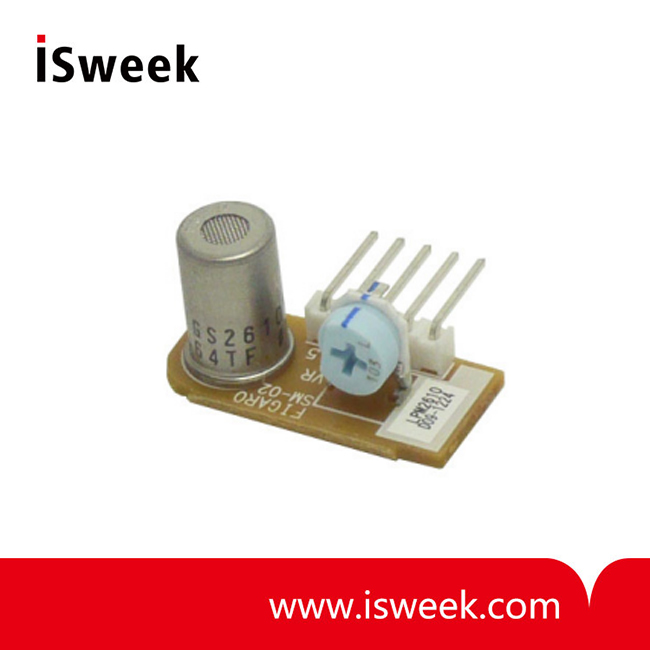

Pre-calibrated Module for LP Gas - LPM2610-D09

Factory calibrated

Temperature compensation circuit
Interferent-resistant sensor TGS2610 Compact size
Meets RoHS regulations

  • Model Number: LPM2610-D09
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Pre-calibrated Module for LP Gas
  • Pre-calibrated Module for LP Gas
Mouse over image to zoom
Share:

Product Specification

Pre-calibrated Module for LP Gas LPM2610-D09 Product Description:


The LPM2610 is a pre-calibrated module for LP gas alarms which is precisely calibrated in Figaro’s humidity and temperature controlled facility. The module uses TGS2610-D00 which incorporates a filter to eliminate the influence of interference gases such as alcohol, resulting in highly selective response to LP gas.

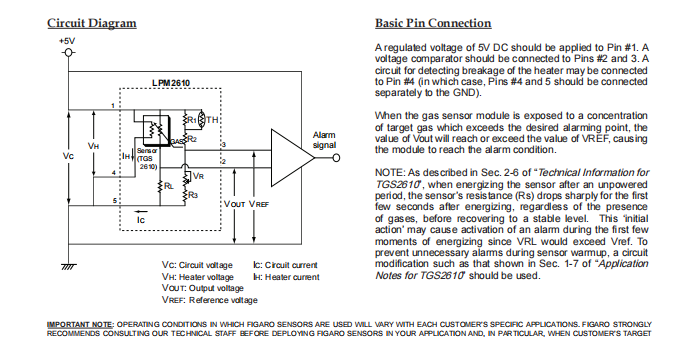

The most important process in manufacturing reliable resdential gas alarms is adjusting the alarm point. Calibration is a complicated and time consuming process which also requires a substantial investment in calibration equipment. By eliminating the costly calibration process, this module enables users to easily and simply manufacture residential LP gas alarms. Figaro has taken the complexity out of designing a gas detector circuit by providing users with a temperature compensation circuit which combines a built-in thermistor and individually adjusted load resistor together with Figaro’s low power LP gas sensor.
A connector allows easy replacement of the module for the purpose of periodic sensor renewal. This input/output connector enables easy installation of the module into the gas detectors’ mother board.
This same mother board can be used for both methane and LP gas detectors by simply changing the module.
This module is designed to meet the performance requirements of EN50194 and UL1484.

Please refer to “Technical Information for TGS2610” for sensor sensitivity characteristics. Refer to “Application Notes for TGS2610” for further information regarding circuit design.




Pre-calibrated Module for LP Gas?LPM2610-D09?Features:

Factory calibrated

Temperature compensation circuit
Interferent-resistant sensor TGS2610 Compact size

Meets RoHS regulations


Pre-calibrated Module for LP Gas?LPM2610-D09?Applications:

Residential LP gas alarm

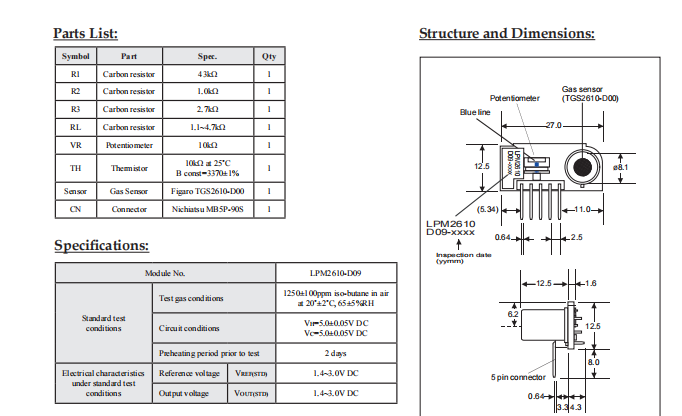

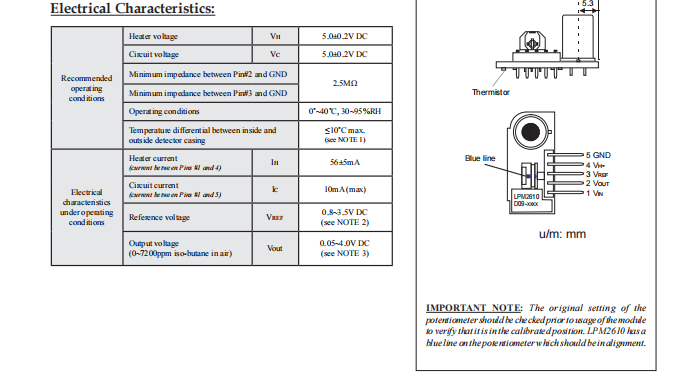

Pre-calibrated Module for LP Gas?LPM2610-D09???Technical Specification:



?
