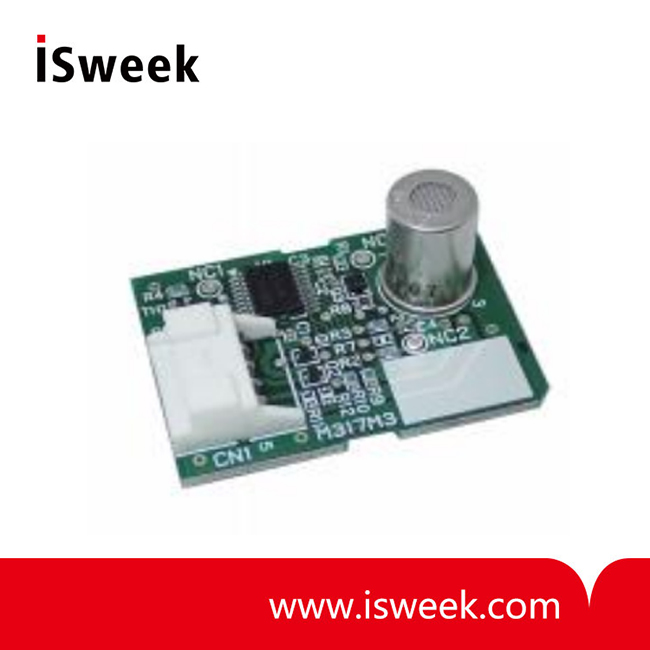

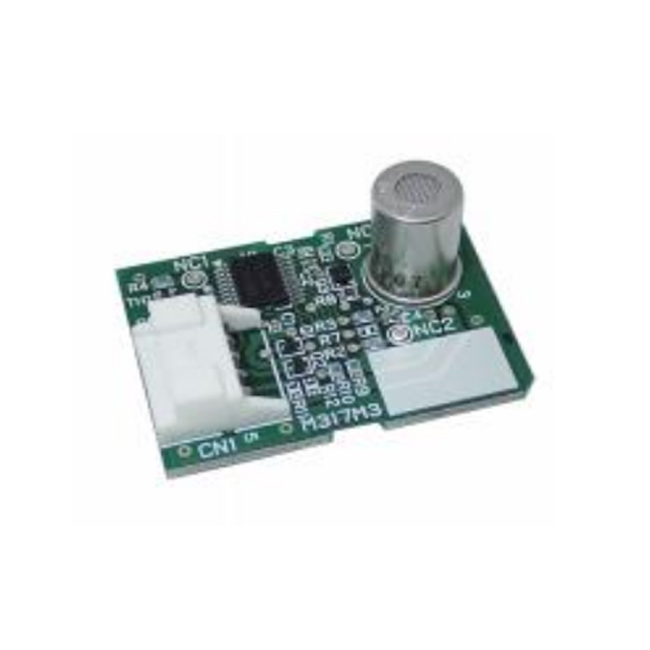

Pre-calibrated Module for Refrigerant Gases R-32 - FCM2630-J0A

Temperature compensation circuit
Resistant to interference gases

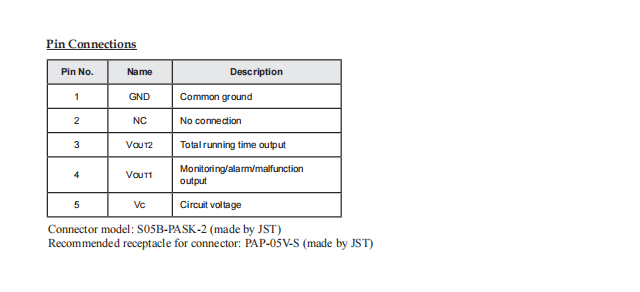

Open collector output (monitoring/alarm/malfunction output)
Meets IEC60335-2-40 and JRA4068 requirements

  • Model Number: FCM2630-J0A
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Pre-calibrated Module for Refrigerant Gases R-32
  • Pre-calibrated Module for Refrigerant Gases R-32
Mouse over image to zoom
Share:

Product Specification

Pre-calibrated Module for Refrigerant Gases R-32 FCM2630-J0A?Product Description:

FCM2630-J0A is an embedded type module using the semiconductor gas sensor which is optimized to detect A2L refrigerant gas R-32. This module enables users to easily build a reliable gas leakage detection system by eliminating electronic circuit design for temperature compensation and the calibration process. In addition, a connector allows easy replacement of the gas sensor module for periodic maintenance.

The gas sensor has a built-in filter to reduce the influence of alcohol and other interference gases, resulting in high selectivity to R-32.

FCM2630-J0A is capable of satisfying the IEC60335-2-40 Edition 7.0 Annex LL and the JRA4068:2023 (Performance 3) standards. The applicable standards are both limited to refrigerant gas type: R-32.




Pre-calibrated Module for Refrigerant Gases R-32?FCM2630-J0A??Features:



Factory calibrated
Temperature compensation circuit
Resistant to interference gases

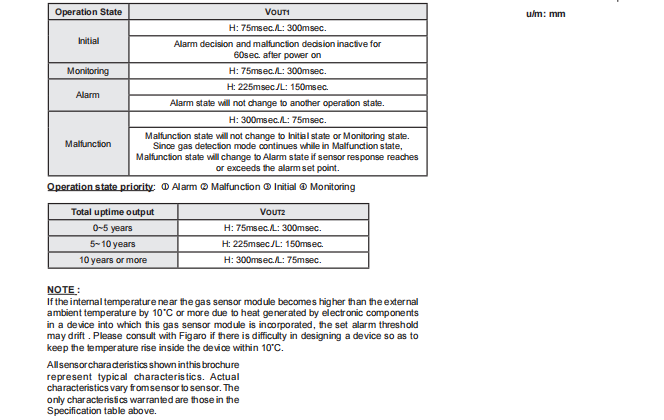

Open collector output (monitoring/alarm/malfunction output)
Meets IEC60335-2-40 and JRA4068 requirements



Pre-calibrated Module for Refrigerant Gases R-32?FCM2630-J0A?Applications:


Refrigerant gas leak detection in air
conditioning/refrigeration systems

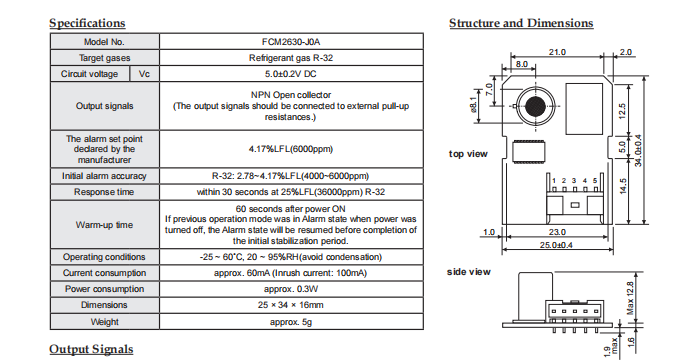

Pre-calibrated Module for Refrigerant Gases R-32?FCM2630-J0A??Technical Specification:
