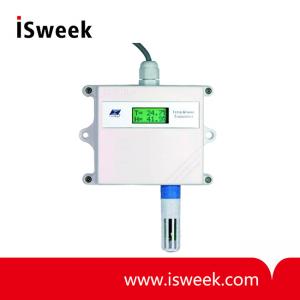

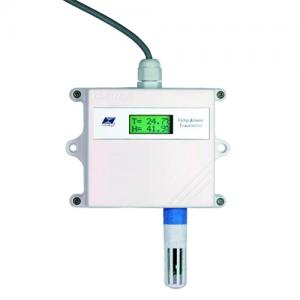

Protective Temperature and Humidity Transmitter - JWSL-6

? Humidity Range: 0～100%RH
? Temperature Range: 0°C～50°C
? AC power supply: AC 24V (18V~24V)
? Humidity Accuracy: ± 3％RH (5～95％RH, 25°C?)
? Temperature Accuracy: ± 0.5°C (25°C)
? Working Humidity: 0～100%RH (no condensation)
? Working Temperature: -10℃～60°C
? Response time: ≤15s (1m/sair speed)

Model Number: JWSL-6

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JWSL-6 Protective Temperature and Humidity Transmitter Introduction
Sensor, transmitter integrated design and big screen display is suitable for hvac indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. This product has reliable performance, long service life, fast response speed. A variety of models meet the requirement of RoHS lead-free.

JWSL-6 Protective Temperature and Humidity Transmitter Characteristic
? Low price
? Low drift
? Fast response
? Strong anti-interference
? Easy installation
? Stable performance
? Long service life
? Many kind of analog output signal
? Special filter design, can effectively reduce measurement error from the wind speed , prolong probe's service life

JWSL-6 Protective Temperature and Humidity Transmitter Parameters

DC power supply	Current output: DC 24V (22V~26V)
	Voltage output: DC 24V (12V~24V)
	Net output: DC 24V (12V~24V)
AC power supply	AC 24V (18V~24V)
Max current	Two wires system output: 40mA (DC 24V)
	Three wires system output: 50mA (DC 24V)
	Voltage output: 20mA (DC 24V)
	Net output: 20mA (DC 24V)
Accuracy	Humidity: ±3％RH (5～95％RH, 25°C)
Accuracy	Temperature: ± 0.5°C (25°C)
Working environment	Humidity: 0～100%RH (no condensation)
Working environment	Temperature: -10℃～60°C
Range	Humidity: 0～100%RH
Range	Temperature: 0°C～50°C
Response time	≤15s (1m/sair speed)
Long-term stability	Humidity: ≤ 1%RH/y
Long-term stability	Temperature: ≤ 0.1℃/y
Output signal	Current output: 4～20mA
	Voltage output: 0～5V
	Net output: RS485/RS232
Load capacity	Voltage output: output impedance ≤ 250Ω
Load capacity	Current output: ≤ 500Ω
Installation	Wall mounted fixed on the wall
Installation	Pipe type flange or thread installation (thread M22x1.5)
Shell	ABS white 117mm x 86mm x 41mm (without probe)
