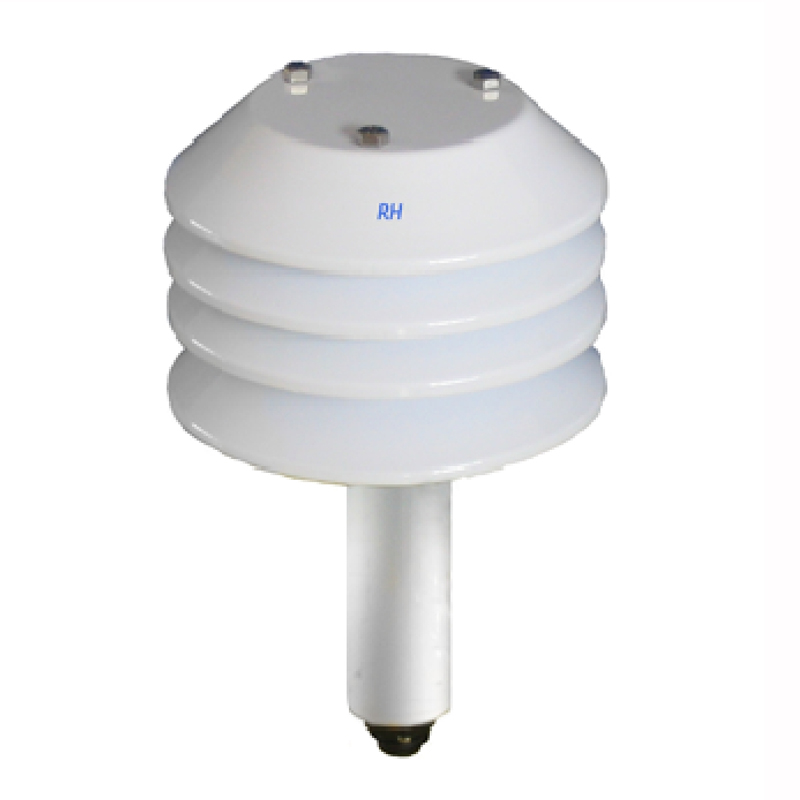

Relative Air Humidity Sensor - UR

? Typical range: 0 ~ 100%Rh
? Resolution: <0.1%
? Accuracy: ± 1%
? Response time: < 8sec (10 ~ 80%RH)
? Type of transducer: capacitive
? Working conditions: -50 ~ +80°C (-60 ~ +80°C available)
? Protections: polarity reverse and transient

Model Number: UR
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

UR Air humidity sensor
URV Air humidity sensor with fan

UR Relative Air Humidity Sensor DESCRIPTION
Sensor for relative air humidity measurement at low power (<0.1 W), compact and sturdy, made of anodized aluminum alloy for protection against salt and oxidizing agents. According to WMO norms for environmental monitoring.

Very fast and precise, linear on full range of measure, easy to interface with any data logger. Product for both natural ventilation and forced ventilation. The sensor is equipped with electrical protection and is available with different signal outputs, normalized voltage or current 0 - 1Vdc, 4 - 20mA or RS485/Modbus. Available also combined temperature-humidity (model UTA).

UR Relative Air Humidity Sensor Highlighted specs
? Accurated and reliable Air Humidity Sensor
? Limited dimensions and weight
? Measure with high precision capacity
? Compact and light design in aluminum for hot and cold climates
? According to WMO standards and to EN 15518-3:2011
? Accuracy ≤ 1%, response time <8sec (10÷80%Rh)
? Available with forced ventilation
? According to CE

UR Relative Air Humidity Sensor Technical Data

Typical range	0 ~ 100%Rh
Resolution	<0.1%
Accuracy	± 1%
Response time	< 8sec (10 ~ 80%RH)
Type of transducer	capacitive
Ventilation	natural (cod. UR) Forced (cod. URV)
Signal out	0 ~ 1 Vdc; 4 ~ 20mA (0 ~ 100%Rh) , RS485 / ModBus Rtu
Working conditions	-50 ~ +80°C (-60 ~ +80°C available)
Protections	polarity reverse and transient
Made of	aluminium alloy, stainless steel screws
Power supply and consumption	10 - 30Vdc, (typ.<0.1W, max 2W@12Vdc mod. TAV)
Weight	680g

UR Relative Air Humidity Sensor Order Form

Sensor	Air Relative Humidity Sensor Fan Air Relative Humidity Sensor	UR URV	A B C	05 10 xx	SS1 SS2 SS3
Output	0 - 1Vdc A 4 - 20mA B RS485 / Modbus Rtu
Accessories	CS05 – Cable 5m sensor-datalogger CS10 – Cable 10m sensor-datalogger CSxx – Cable xx* m length sensor – datalogger
	SS1 – Sensors support l=500mm SS2 – Sensors support l=1500mm SS3 – Sensors support l=900mm
