RF Microwave Meter - 840046

? Display: 3? digits, maximum reading 3999
? RF Power Density: 0.003 to 2.700 mW / cm2
? RF Frequency: 50 MHz to 3.5 GHz
? Microwave Frequency: 2450 MHz
? Resolution: 0.001 mW / cm2
? Accuracy: ±2 dB @ 2.45 GHz ±50 MHz
? Operating Temperature: 41°F to 104°F (5°C to 40°C)
? Operating RH: <80% RH

Model Number: 840046
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

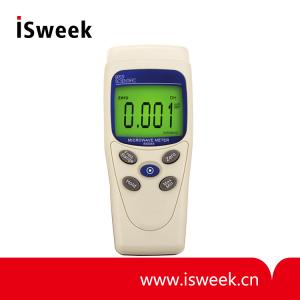

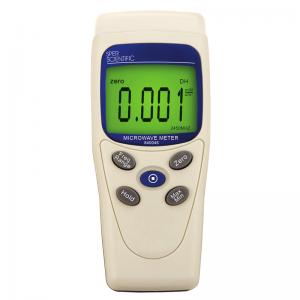

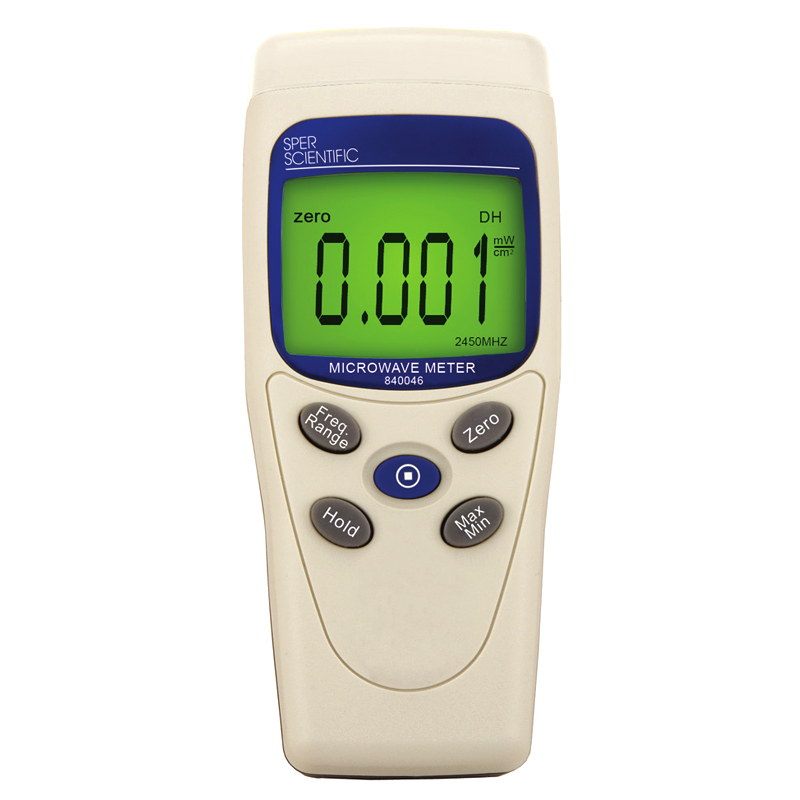

RF Microwave Meter

Measure the electromagnetic field radiation intensity that is produced from welding equipment, microwave oven leakage, and other environmental safety concerns

The Microwave Meter is calibrated precisely on the frequency value 2.45 GHZ (microwave oven). Features maximum and minimum hold, an audible alarm, and a zero adjustment to eliminate background EMF. The display also indicates overload and low battery. Comes with a soft carrying case and standard 9V battery, which provides approximately 100 hours of use.

Dim: 5" x 2" x 1?" (127 x 51 x 32 mm).
Weight: 5.4 oz (153 g).

840046 RF Microwave Meter Specifications

Display	3? digits, maximum reading 3999
RF Power Density	0.003 to 2.700 mW / cm2
RF Frequency	50 MHz to 3.5 GHz
Microwave Frequency	2450 MHz
Resolution	0.001 mW / cm2
Accuracy	±2 dB @ 2.45 GHz ±50 MHz
Axis	Single
Alarm	@ readings >1 mW / cm2
Operating Temperature	41°F to 104°F (5°C to 40°C)
Operating RH	<80% RH
