Semiconductor gas sensor detects LP propane with Figaro TGS 2618 - AG-2-LPG-M2618(D)

High selectivity to LP gas
Long life and low cost
Alarm output
USART digital output
pre-calibrated before leaving the factory

  • Model Number: AG-2-LPG-M2618(D)
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Semiconductor gas sensor detects LP propane with Figaro TGS 2618
  • Semiconductor gas sensor detects LP propane with Figaro TGS 2618
Mouse over image to zoom
Share:

Product Specification

Semiconductor gas sensor detects LP propane with Figaro TGS 2618 AG-2-LPG-M2618(D)  Product Description:

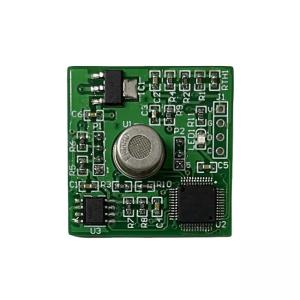

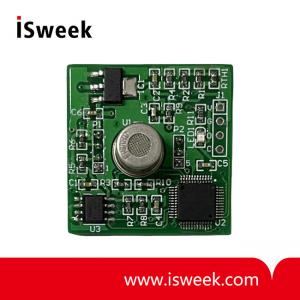

The AG-2-LPG-MA2618(D) is an embedded type module equipped with the Figaro’s semiconductor Sensor TGS2618-D,It is pre-calibrated at the factory and features a filter designed to minimize interference from gases such as alcohol. This module is capable of detecting liquefied petroleum gas (LP gas), for instance, propane (C3H8).
It utilizes digital communication through a UART and Alarm output interface for gas concentration readings. This allows users to easily and quickly integrate the module into LP gas detectors and alarms systems, such as Residential LP gas detectors.



Features:

High selectivity to LP gas

Long life and low cost
Alarm output
USART digital output
pre-calibrated before leaving the factory




Technical Specification:


Item

Specification

Model Number

AG-2-LPG-M2618(D)

Target Gases

Propane

Sensing Principle

Semiconductor

Detection Range

0 ~ 20% LEL

Measurement Error

< ±3% LEL

Operating Voltage

5V±0.2V DC

Output Signal

USART

Alarm Point

8% LEL

Temperature Range

-40- 70°C

Humidity Range

20% ~ 95%RH

Pressure Range

1 ± 0.1 atm

Storage Temperature

-10 - 80°C

Size

L*W=31.1mm*30.3mm
