Semiconductor gas sensor detects LP propane with Figaro TGS 2619 - AG-2-CH4-M2619(D)

High selectivity to methane
Long life and low cost
Alarm output
USART digital output
pre-calibrated before leaving the factory

Model Number: AG-2-CH4-M2619(D)
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Semiconductor gas sensor detects LP propane with Figaro TGS 2619 AG-2-CH4-M2619(D)?Product Description：

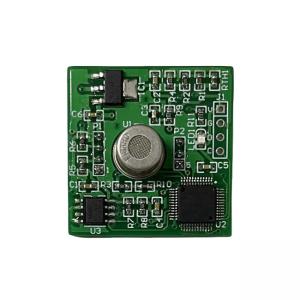

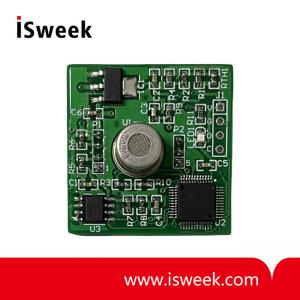

The AG-2-CH4-M2619(D) is an embedded type module equipped with the Figaro’s semiconductor Sensor TGS2619; the module has been pre-calibrated before leaving the factory and it includes a specialized filter that reduces interference from gases like alcohol, ensuring a selective response to methane (CH4). It utilizes digital communication through a USART and a programmable Alarm output interface for gas concentration readings. This allows users to easily and quickly integrate the module into residential gas leakage alarm systems, such as household natural gas detectors.

Features：

High selectivity to methane

Long life and low cost

Alarm output

USART digital output

pre-calibrated before leaving the factory

Technical Specification：

Item	Specification
Model Number	AG-2-CHX-M2619(D)
Target Gases	CH4
Sensing Principle	Semiconductor
Detection Range	0 ~ 20% LEL
Measurement Error	< ±3% LEL
Operating Voltage	5V±0.2V DC
Output Signal	USART
Alarm Point	10% LEL
Temperature Range	-40- 70°C
Humidity Range	20% ~ 95%RH
Pressure Range	1 ± 0.1 atm
Storage Temperature	-10 - 80°C
Size	LW=31.1mm30.3mm
