Smart SDI-12/RS-485 Temperature Sensor - Smart Temp

? Sensor?: Silicon bandgap temperature sensor?
? Output?: SDI-12 v.1.4 and RS-485?
? Measurement Range:?: -40°F to +140°F (-40°C to +60°C)?
? Accuracy?:
±0.18°F (±0.1° C) from 23°F to 122°F (-5°C to +50°C)
±0.2°C outside this range?
? Resolution?: 0.01°C?

  • Model Number: Smart Temp
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Smart SDI-12/RS-485 Temperature Sensor
  • Smart SDI-12/RS-485 Temperature Sensor
  • Smart SDI-12/RS-485 Temperature Sensor
Mouse over image to zoom
Share:

Product Specification

Smart SDI-12/RS-485 Temperature Sensor?DESCRIPTION
The Smart Temp is a high precision digital temperature sensor that meets USGS guidelines. It features the ability to automatically sample temperature and calculate minimum, maximum, and average temperatures on a flexible time scale.

This sensor is ideal for high-accuracy readings in water, soil, and air. It features fully-potted components, robust PVC Type II housing, and marine-grade stainless steel, making the sensor ideal for harsh environments. Model 51163 is small enough to easily deploy through standard 1” (2.5cm) PVC conduit with 8” (20.3cm) factory bend corners. It also offers a loop hole which can be used to mount weights or pull the sensor through pipes or other small areas.

SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications, or use the standard SDI-12 command set over an RS-485 physical interface for applications that require long cable runs or many sensors.

Smart SDI-12/RS-485 Temperature Sensor?FEATURES
? Automatic minimum, maximum, and average calculations
? RS-485 and SDI-12 interfaces (auto- detecting)
? SDI-12 Ver 1.4 compliant
? Firmware updates through RS-485
? NIST certification available
? High-accuracy temperature measurement
? Extremely low current draw
? Works in water, soil, or air

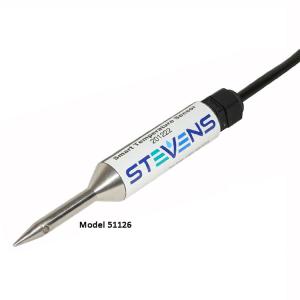

? Durable 316 grade stainless steel tine for easy soil insertion (model 51126)
? Suitable for freshwater or marine applications
? Fully potted electronics
? Tough PVC Type II housing
? Celsius and Fahrenheit output
? No calibration required

Smart SDI-12/RS-485 Temperature Sensor?TECHNICAL SPECIFICATIONS

Sensor
Silicon bandgap temperature sensor
Output
SDI-12 v.1.4 and RS-485
Measurement?Range:
-40°F to +140°F (-40°C to +60°C)
Accuracy
±0.18°F (±0.1° C) from 23°F to 122°F (-5°C to +50°C)
±0.2°C outside this range
Resolution
0.01°C
Current Draw
Idle: 10 μA (SDI-12), 0.6 mA (RS485)
Sample: 6 mA for 10 ms
Transmit/receive: 6 mA for ~ 100 ms (depends?on length of data)
Peak: 30 mA for 1 ms during initial power-on
Units
Configurable: Celsius or Fahrenheit
Dimensions
4.95” (125.7 mm) ?L x 0.7” (17.8 mm) ? (#51126)
3.56” (90.4 mm) ?L x 0.70” (17.8 mm) ? (#51163)

Smart SDI-12/RS-485 Temperature Sensor?ORDERING INFORMATION
PART #
DESCRIPTION
51126-025
Smart Digital Temperature Sensor, metal tine, 25’ cable
51126-050
Smart Digital Temperature Sensor, metal tine, 50’ cable
51126-100
Smart Digital Temperature Sensor, metal tine, 100’ cable
51163-025
Smart Digital Temperature Sensor, compact housing, 25’ cable
51163-050
Smart Digital Temperature Sensor, compact housing, 50’ cable
51163-100
Smart Digital Temperature Sensor, compact housing, 100’ cable
93924-002
Cable for custom lengths in excess of 100’, specify length needed?when ordering
