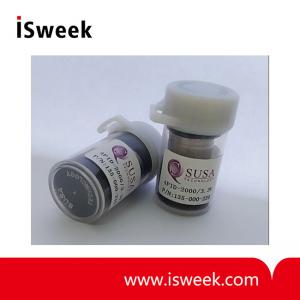

SUSA PID sensor - 4PID-2000 3.3V-plus
SUSA PID sensor contains the miniature UV lamp, high sensitivity with low noise electronic components and integrated ionization chamber.
- Model Number: 4PID-2000 3.3V-plus
- Data Sheet:
- Quantity:
- - +
Product Specification
SUSA PID sensor contains the miniature UV lamp, high sensitivity with low noise electronic components and integrated ionization chamber. The standard 4 series compact structure is designed for different application purposes, such as portable, fixed detectors, as well as analyzers. It offers a wide detection range, up to 10000ppm(IBE equivalent) and 5ppb resolution.
|
Performance |
|
|
Operating Principle |
Photo Ionisation Detector |
|
Detection Range |
0~10000ppm（max） |
|
Resolution |
5ppb-2000ppb |
|
Repeatability |
< ±2% |
|
Operating Temp Range |
-40~50℃ |
|
Operating Humidity Range |
0~99%RH non-condensing |
|
Operating Pressure Range |
800~1200 mbar |
|
Electrical |
|
|
Operating Voltage |
3.3±0.1V |
|
Zero |
60±20mV |
|
Output Signal |
2.0±0.5V |
|
Security Certificate |
Pending |
|
Lifetime |
|
|
Storage Temp |
0~20℃ |
|
Expected Operating Life |
36 months in air |
|
Lamp Operating Life |
24 months lit hours |
|
Standard Warranty |
12 months |

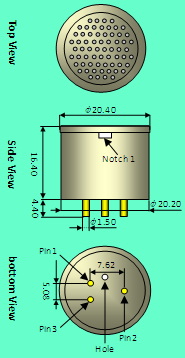

PID Schematic Diagram
Notes：
Weight＜16g
Pin1：+ V supply
Pin2：Signal output
Pin3：0V supply
Hole：Used for taking lamp Notch1&Notch2：Cut，Used for opening the upper cover
All dimensions ±0.1mm unless otherwise stated
