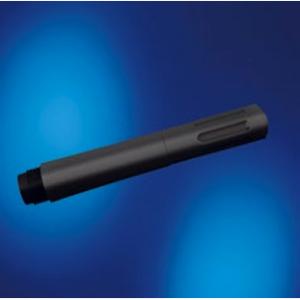

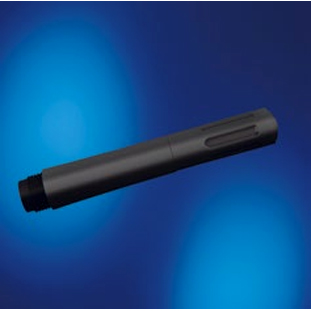

Temperature And Humidity Sensor - TFF20
Dimensions: Length 85 mm, ? 12 mm
Weight: Approx. 50g
Protection: Polycarbonate / IP65
Permitted operation temp.: 0...50°C
Permitted humidity: 0...100% RH
Relative Humidity Measurement range: 0… 100% RH
Relative Humidity Accuracy: ± 2 % (0 … 90 %), ± 3 % (90 … 100 %) RH
- Model Number: TFF20
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
Digital TFF20
Reference measurement in service and maintenance, suitable for measurements in air conditioning and heating industry segments.
| Technical Data | Dimensions | Length 85 mm, ? 12 mm |
| Weight | Approx. 50g | |
| Protection | Polycarbonate / IP65 | |
| Permitted operation temp. | 0...50°C | |
| Permitted humidity | 0...100% RH | |
| Storage temperature | -20...60°C | |
| Storage humidity | 20...80% RH | |
| Relative Humidity | Measurement | range 0… 100% RH |
| Accuracy | ± 2 % (0 … 90 %), ± 3 % (90 … 100 %) RH | |
| Resolution | 0.01% RH | |
| Principle | Capacitive | |
| Temperature | Measurement range | - 40 … 80 ° C |
| Accuracy (20°C) | ± 0.1°C | |
| Accuracy (0...40°C) | ± 0.2°C otherwise ± 0.5°C | |
| Resolution | 0.01°C | |
| Principle | PT1000, Class A, DIN EN 60751 | |
| Absolute Humidity | Measurement range | 0...300g/m3 |
| Unit | g/m3 | |
| Dew Point Temp. | Measurement range | -40...80°C |
| Mixing Ratio | Measurement range | 0...550g/kg |
| Compatibility | XA1000, XP200, OPUS20E | |
| Accessories | Stainless steel sinter cap | |
| Calibration salt 11,3% RH | ||
| Calibration salt 32,8% RH | ||
| Calibration salt 52,9% RH | ||
| Calibration salt 75,3% RH | ||
| Calibration salt 90,1% RH | ||
| Calibration adapter | ||
