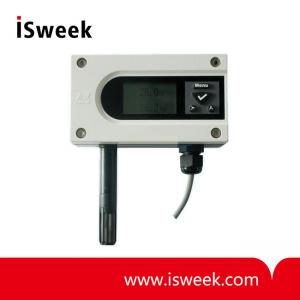

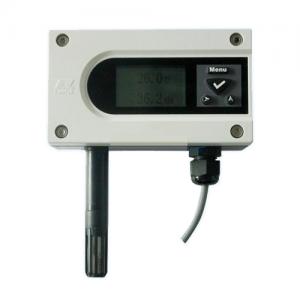

Temperature and Humidity Transmitter - JWSK-5

? Humidity Range: 0 ～100%RH
? Temperature Range: -40°C～120°C (decide by label)
? Temperature Response time: ≤15s
? Humidity Response time: ≤4s
? Working Humidity: 5～95%RH
? Working Temperature: -20°C～60°C
? Many analog output: 0 ~ 5V, 0 ~ 10V or 4 ~ 20mA
? Optional network RS485 or RS232 output

Model Number: JWSK-5

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JWSK-5 Temperature and Humidity Transmitter Introduction
JWSK-5 series temperature and humidity transmitter belongs to industrial product and can measure the temperature range from -40°C to 120°C.

JWSK-5 Temperature and Humidity Transmitter Characteristic
? Many analog output: 0 ~ 5V, 0 ~ 10V or 4 ~ 20mA
? 128 x 64 LCD display temperature and humidity
? Zero point correction function
? Probe maximum working temperature range from -40°C to 120°C
? Can switch from temperature and humidity to temperature, dew point
? Optional network RS485 or RS232 output

JWSK-5 Temperature and Humidity Transmitter Parameters

Power supply	Current output: DC 24V (22V~26V)
	Voltage output: DC 24V (12V~24V)
	Net output: DC 24V (12V~24V)
Max current	Current output: 50mA (DC 24V)
	Voltage output: 20mA (DC 24V)
	Net output: 20mA (DC 24V)
Accuracy	5～95％RH
Working environment	Humidity: 5～95%RH
Working environment	Temperature: -20°C～60°C
Range	Humidity: 0～100%RH
Range	Temperature: -40°C～120°C (decide by label)
Response time	temperature: ≤15s Humidity: ≤4s
Long-term stability	Humidity: ≤ 1%RH/y
Long-term stability	Temperature: ≤ 0.1°C/y
Analog output	0～5V or 0～10V or 4～20mA (decide by label)
Net output	RS485/RS232
LCD display	temperature °C, humidity %R, dew-point °C
Display resolution	0.1%RH, 0.1°C
Load capacity	Voltage output: output impedance ≤ 250Ω
Load capacity	Current output: ≤ 500Ω
Charater	repeatability: ≤0.5%RH, ≤0.1°C annual drift: ≤1%RH, ≤0.1°C
Installation	Wall mounted or pipe type
Shell	125mm x 70mm x 41mm
Weight	about 305g (wall mounted)
