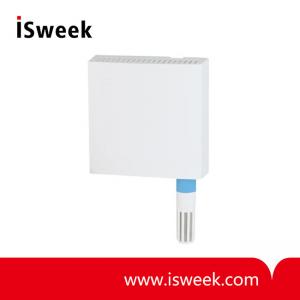

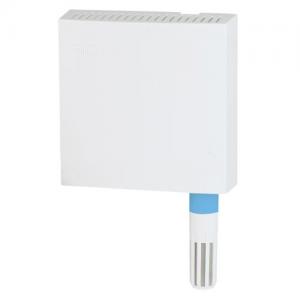

Temperature and Humidity Transmitter (Wall Mounted) - JWSL-12

? Humidity Range: 0～100%RH
? Temperature Range: 0°C～50°C
? Humidity Accuracy: ± 3％RH (5～95％RH, 25°C)
? Temperature Accuracy: ± 0.5°C (25°C)
? Working Humidity: 0～100%RH (no condensation)
? Working Temperature: -10°C～60°C
? Response time: ≤15s (1m/sair speed)
? CE certification

Model Number: JWSL-12

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JWSL-12 Temperature and Humidity Transmitter Introduction
Sensor, transmitter integrated design and big screen display is suitable for hvac indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. This product has reliable performance, long service life, fast response speed. A variety of models meet the requirement of RoHS lead-free.

JWSL-12 Temperature and Humidity Transmitter Use
Applicable to temperature and humidity measurement of telecommunication room, offices, factories, workshop, hospital, archives, museums, hvac, building automation and so on.

JWSL-12 Temperature and Humidity Transmitter Characteristic
? High precision, low drift, fast response speed
? Long service life and strong anti-jamming capability
? A variety of network output
? Small volume
? A variety of models meet RoHs lead-free requirements
? Stable performance, easy to install
? CE certification

JWSL-12 Temperature and Humidity Transmitter Parameters

DC power supply	Current output: DC 24V (22V~26V)
	Voltage output: DC 24V (12V~24V)
	Net output: DC 24V (12V~24V)
Max current	Two wires system output: 40mA (DC 24V)
	Voltage output: 20mA (DC 24V)
	Net output: 20mA (DC 24V)
Accuracy	Humidity: ± 3％RH (5～95％RH, 25°C)
Accuracy	Temperature: ± 0.5°C (25°C)
Working environment	Humidity: 0～100%RH (no condensation)
Working environment	Temperature: -10°C～60°C
Range	Humidity: 0～100%RH
Range	Temperature: 0°C～50°C
Response time	≤15s (1m/sair speed)
Long-term stability	Humidity: ≤ 1%RH/y
Long-term stability	Temperature: ≤ 0.1°C/y
Output signal	Current output: 4～20mA
	Voltage output: 0～5V
	Net output: RS485/RS232
Load capacity	Voltage output: output impedance ≤ 250Ω
Load capacity	Current output: ≤ 500Ω
Installation	Wall mounted
Shell	ABS white 91mm x 91mm x 30mm (without probe)
