The semiconductor gas sensor module CH4 H2 is equipped with the Figaro TGS2610 - AG-2-H2-M2610(D)

Long life and low cost
USART or PWM digital output
pre-calibrated before leaving the factory

  • Model Number: AG-2-H2-M2610(D)
  • Data Sheet: Date Sheet File
Quantity:
- +
  • The semiconductor gas sensor module CH4 H2 is equipped with the Figaro TGS2610
  • The semiconductor gas sensor module CH4 H2 is equipped with the Figaro TGS2610
Mouse over image to zoom
Share:

Product Specification

The semiconductor gas sensor module CH4 H2 is equipped with the Figaro TGS2610 AG-2-H2-MA2610(D)?Product Description:

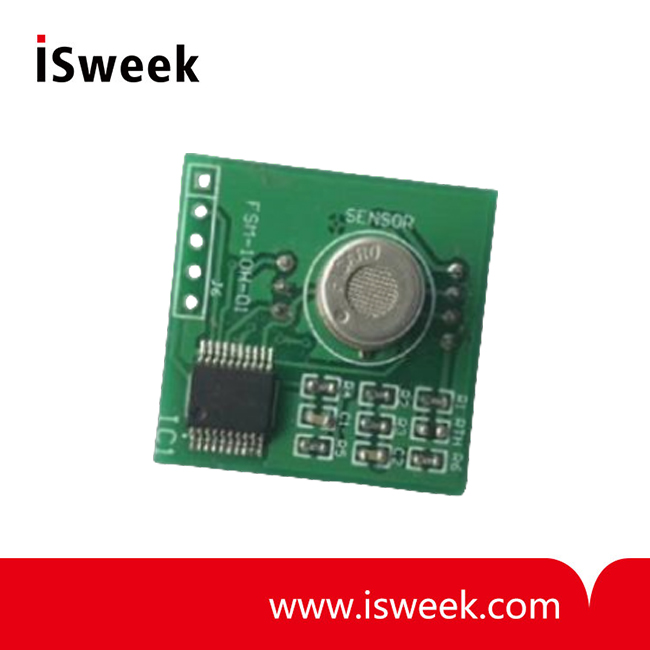

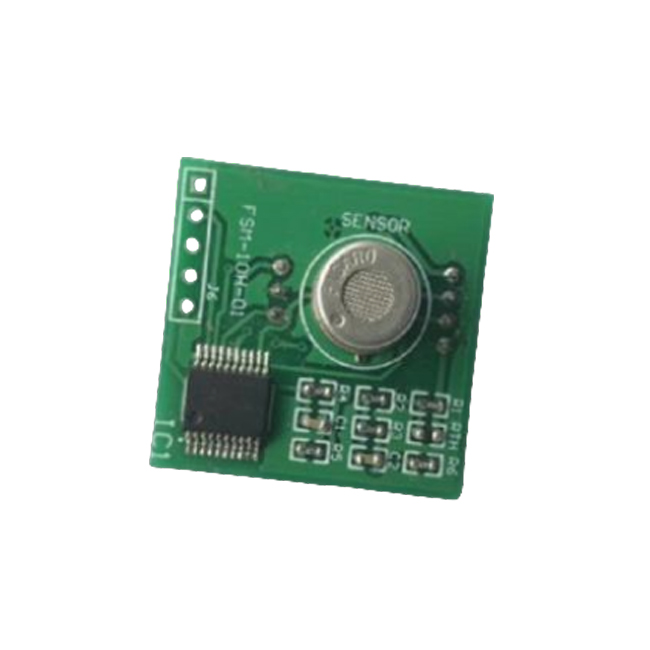

The AG-2-H2-MA2610(D) is an embedded type module equipped with the Figaro’s semiconductor Sensor TGS2610-D00, capable of detecting Hydrogen (H2) in diverse environments. The module has been pre-calibrated before leaving the factory and has good durability, stability, and anti-poisoning. It includes a built-in temperature sensor for data correction via software algorithms to minimize environmental impact on measurement accuracy. It utilizes digital communication through a USART or PWM digital output for gas concentration readings, which allows users to easily and quickly integrate the module into various systems. This makes it suitable for both residential and industrial gas detection applications.



Features:
Long life and low cost
USART or PWM digital output
pre-calibrated before leaving the factory




Technical Specification:


Item

Specification

Model Number

AG-2-H2-M2610(D)

Target Gases

Hydrogen

Sensing Principle

Semiconductor

Detection Range

0 ~ 4,000 ppm

Measurement Error

< ±300ppm

Operating Voltage

5V±0.2V DC

Output Signal

USART

PWM (2kHz)

Temperature Range

-40- 70°C

Humidity Range

20% ~ 95%RH

Pressure Range

1 ± 0.1 atm

Storage Temperature

-10 - 80°C

Size

L*W*H=26mm*27mm*22mm

(TGS2610-D)
