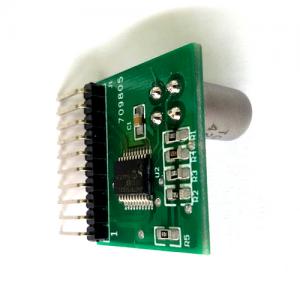

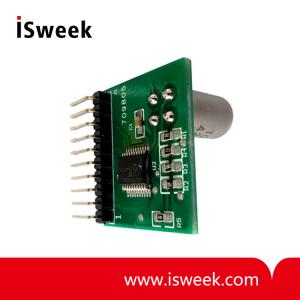

The semiconductor sensor module CH4 is equipped with the Figaro TGS 2611 E00 - AG-2-CH4-MA2611(D)

High selectivity to methane
Long life and low cost
Programmable Alarm output
USART digital output
pre-calibrated before leaving the factory

  • Model Number: AG-2-CH4-MA2611(D)
  • Data Sheet: Date Sheet File
Quantity:
- +
  • The semiconductor sensor module CH4 is equipped with the Figaro TGS 2611 E00
  • The semiconductor sensor module CH4 is equipped with the Figaro TGS 2611 E00
Mouse over image to zoom
Share:

Product Specification

The semiconductor sensor module CH4 is equipped with the Figaro TGS 2611 E00 AG-2-CH4-MA2611(D) Product Description:


The AG-2-CH4-MA2611(D) is an embedded type module equipped with the Figaro’s semiconductor Sensor TGS2611-E00, the module has been pre-calibrated before leaving the factory and it includes a specialized filter that reduces interference from gases like alcohol, ensuring a selective response to methane (CH4). It utilizes digital communication through a USART and a programmable Alarm output interface for gas concentration readings. This allows users to easily and quickly integrate the module into residential gas leakage alarm systems, such as household natural gas detectors.




Features:
High selectivity to methane
Long life and low cost
Programmable Alarm output
USART digital output
pre-calibrated before leaving the factory




Technical Specification:


Item

Specification

Model Number

AG-2-CH4-MA2611(D)

Target Gases

CH4

Sensing Principle

Semiconductor

Detection Range

0 ~ 20% LEL

Measurement Error

< ±2.5% LEL

< ±5% LEL FS

Operating Voltage

5V±0.2V DC

Output Signal

USART

Programmable Alarm output

Temperature Range

-10 - 55°C

Humidity Range

20% ~ 95%RH

Pressure Range

1 ± 0.1 atm

Storage Temperature

-25 ~ 60°C

Size

L*W*H=27.2mm*22.8mm*17mm

(TGS2611-E00)
