Voltage Output Temperature and Humidity Sensor Module - HTM226LF

? Full Lead free product
? Calibrated within +/-5% @55%RH at 5Vdc
? Small size and very cost effective
? 50kOhms +/-3% NTC temperature sensor @25°C
? The best combination of cost effectiveness and performance
? Stable, linear proportional voltage output from 0% to 95%RH
? Stable and reproducible characteristics with temperature
? High reliability and long term stability

  • Model Number: HTM226LF
  • Data Sheet: Date Sheet File
Quantity:
- +

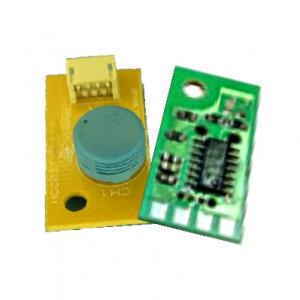

  • Voltage Output Temperature and Humidity Sensor Module
  • Voltage Output Temperature and Humidity Sensor Module
Mouse over image to zoom
Share:

Product Specification

HTM226LF Temperature and Humidity Sensor Module DESCRIPTION
Based on the rugged HS24LF resisitive humidity sensor, HTM226LF is a dedicated humidity and temperature transducer designed for OEM applications where a reliable and accurate measurement is needed. It features a very small size for easy, cost-effective mechanical mounting. Direct interface with a micro-controller is made possible with the nodule’s linear voltage output.

HTM226LF Temperature and Humidity Sensor Module FEATURES
? Full Lead free product
? Calibrated within +/-5% @55%RH at 5Vdc
? Small size and very cost effective
? Miniature connector (JST)
? 50kOhms +/-3% NTC temperature sensor @25°C
? The best combination of cost effectiveness and performance
? Stable, linear proportional voltage output from 0% to 95%RH
? Stable and reproducible characteristics with temperature
? High reliability and long term stability

HTM226LF Temperature and Humidity Sensor Module APPLICATIONS
? Air condition, Humidifier, Dehumidifier
? Humidity controller, Humidity transmitter
? Hygrometer, Hygro-recorder
? Copying machine
? Clock, Weather-forecast barometer


HTM226LF Temperature and Humidity Sensor Module PERFORMANCE SPECS
MAXIMUM RATINGS

Ratings

Symbol

Value

Unit

Storage Temperature

Tstg

-20 to 80

Storage Humidity

RHstg

0 to 100

% RH

Supply Voltage (Peak)

Vs

16

Vdc

Humidity Operating Range

RH

0 to 95

% RH

Temperature Operating Range

Ta

-20 to 60


Temperature and Humidity Sensor Module HTM226LF ELECTRICAL CHARACTERISTICS
(Ta=25°C, Vs=5Vdc +/-5%)

Humidity Characteristics

Symbol

Min

Typ

Max

Unit

Humidity Metrology Range

RH

20



85

%RH

Relative Humidity Accuracy (@25℃,55%RH, Vcc= 5Vdc)

RH



+/-5



%RH

Supply Voltage

Vs

4.75

5.00

5.25

Vdc

Nominal Output @55%RH

Vout

1650

1815

1980

mV

Current consumption

Ic



2

5

mA

Average Sensitivity from 33% to 75%RH

ΔVout/ΔRH

30

33

35

mV/%RH

Temperature coefficient (10℃to 40℃)

Tcc



-0.1



mV/℃


(Ta=25°C)

Temperature Characteristics

Symbol

Min

Typ

Max

Unit

Nominal Resistance @25°C

R

48.5

50.0

51.5

k?

Beta value: B25/85

β

3930

4050

4170

K

Temperature Measuring Range

Ta

-20



80

°C

Nominal Resistance Tolerance @25°C

RN



3



%

Beta Value Tolerance

β



3



%

Response Time

τ



10
