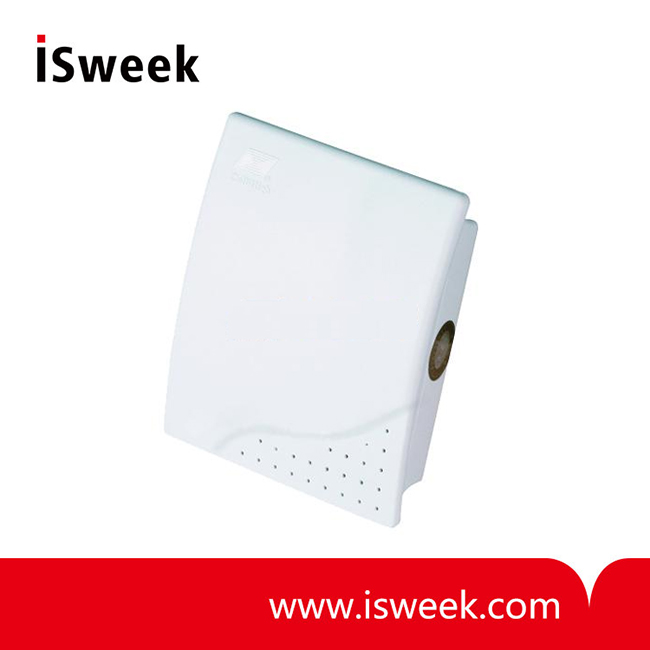

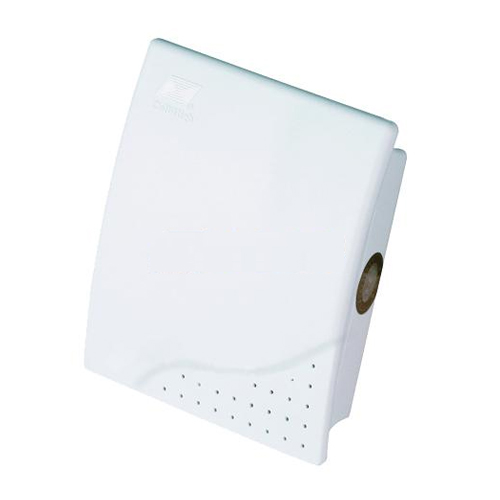

Wall Mounted Temperature and Humidity Transmitter - JWSL-9

? Humidity Range: 0～100%RH
? Temperature Range: 0°C～50°C
? Humidity Accuracy: ± 3％RH (5～95％RH, 25°C)
? Temperature Accuracy: ± 0.5°C (25°C)
? Working Humidity: 0～100%RH (no condensation)
? Working Temperature: -10°C～60°C
? Response time: ≤15s (1m/sair speed)
? Output signal: 4～20mA, 0～5V, RS485/RS232

Model Number: JWSL-9

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JWSL-9 Temperature and Humidity Transmitter Introduction
Sensor, transmitter integrated design and big screen display is suitable for hvac indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. This product has reliable performance, long service life, fast response speed. A variety of models meet the requirement of RoHS lead-free.

JWSL-9?Temperature and Humidity Transmitter?Use
Applicable to temperature and humidity measurement of telecommunication room, offices, factories, workshop, hospital, archives, museums, hvac, building automation and so on

JWSL-9?Temperature and Humidity Transmitter?Characteristic
? High precision, low drift, fast response speed
? Long service life and strong anti-jamming capability
? A variety of network output
? Small volume
? A variety of models meet RoHs lead-free requirements
? Stable performance, easy to install
? CE certification

JWSL-9?Temperature and Humidity Transmitter?Parameters

DC?power?supply	Current?output: DC?24V?(22V~26V)
	Voltage?output: DC?24V?(12V~24V)
	Net?output: DC?24V?(12V~24V)
AC?power?supply	AC?24V (18V~24V)
Max?current	Two?wires?system?output:?40mA (DC?24V)
	Voltage?output: 20mA (DC?24V)
	Net?output: 20mA (DC?24V)
Accuracy	Humidity: ±?3％RH (5～95％RH, 25°C)
Accuracy	Temperature: ±?0.5°C (25°C)
Working?environment	Humidity: 0～100%RH (no?condensation)
Working?environment	Temperature: -10°C～60°C
Range	Humidity: 0～100%RH
Range	Temperature: 0°C～50°C
Response?time	≤15s (1m/sair?speed)
Long-term?stability	Humidity: ≤?1%RH/y
Long-term?stability	Temperature: ≤?0.1°C/y
Output?signal	Current?output: 4～20mA
	Voltage?output: 0～5V
	Net?output: RS485/RS232
Load?capacity	Voltage?output: output?impedance ≤?250Ω
Load?capacity	Current?output: ≤?500Ω
Installation	Wall?mounted????
Shell	ABS?white?85mm x 100mm x 24mm
