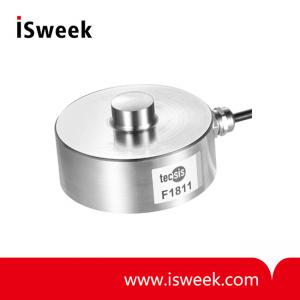

0.25t to 100t Compression Load Cell - F1811
? 0.25t to 100t Compression Load Cell
? Rated output: 1.5±10%mV/V
? Zero balance: ±2 % F.S.
? Non-linearity: 0.1 % F.S.
? Hysteresis: 0.1 % F.S.
? Repeatability: 0.1 % F.S.
? Operation temp range: -20 ~ 80°C
? Protection class: IP67
- Model Number: F1811
- Data Sheet:
- Quantity:
- - +
Product Specification
F1811

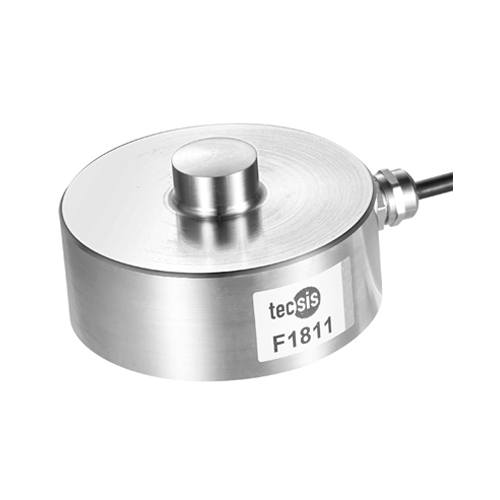

Compression Load Cell

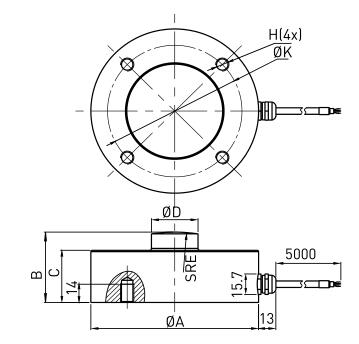

F1811 Compression Load Cell Size and Capacity
F1811 Compression Load Cell Features & Applications
? Low Profile Disk Load Cell, it belongs to disk style design.
? the dimension is 82mm~165mm, a little big, so it has a bit weight.
? It is designed for low profile tension and compression service, spherical designing.
? It is made of Stainless steel, fully welded seal with stainless steel cover.
? The Protection class is IP67, which has the function of waterproof and moisture-proof, and because of its stainless steel material, it is available for the corrosion environment.
? It is available in the capacities 0.25t to 100t.
? It is structure is very compact, easy mounting, its compact size makes the cell ideal for a wide range of applications including testing or weighing systems.
? Can be used single or more sets together, single load cell can be matched with weighing indicator, converting what you want to, because the load cell itself output is mill volt(MV), it has to need an amplifier switch voltage or current.
? Used for electronic truck scale, ground scale, tank and other weighing systems.
F1811 Compression Load Cell Specification
|
Specifications |
Technique |
|
Rated output |
1.5±10%mV/V |
|
Zero balance |
±2 % F.S. |
|
Non-linearity |
0.1 % F.S. |
|
Hysteresis |
0.1 % F.S. |
|
Repeatability |
0.1 % F.S. |
|
Creep (30min) |
0.1 % F.S. |
|
Temp.effect on output |
0.05 % F.S. / 10°C |
|
Temp.effect on zero |
0.05 % F.S. / 10°C |
|
Input impedance |
750±10Ω |
|
Output impedance |
700±5Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
10 V |
|
Maximum excitation |
15 V |
|
Compensated temp range |
-10 ~ 60°C |
|
Operation temp range |
-20 ~ 80°C |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200 % F.S. |
|
Cable size |
?5×5000 mm |
|
Protection class |
IP67 |
