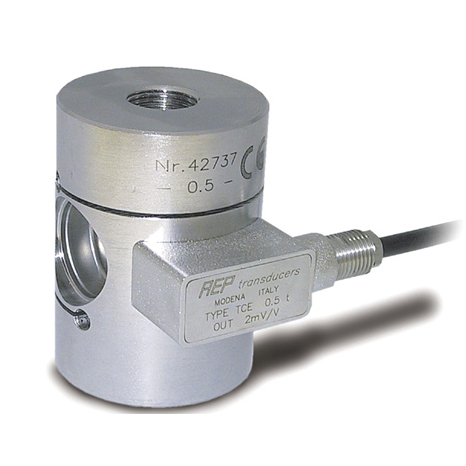

350kg to 20t Amplified Load Cell - TCEAMP
350kg to 20t Load Cell Load Cell TCEAMP
Linearity: 0.03%
Material: Stainless Steel
Output: 4-20mA, 5Volt, 10Volt
LASER welded
Protection: IP67
- Model Number: TCEAMP
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
TCEAMP
4-20mA, 5Volt, 10Volt Output 350kg to 20t Load Cell

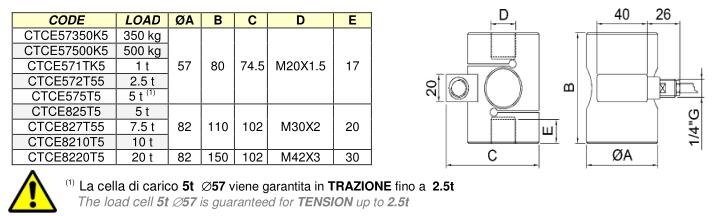

Dimensions [mm]
Technical Data
|
ACCURACY |
0.03% |
|
NOMINAL LOAD |
350 - 500 kg
1 - 2.5 - 5 (1) -7.5 -10 -20 t
|
|
NOMINAL SENSITIVITY CALIBRATION TOLERANCE |
4-20 mA (3 wires), ±5V or ±10V
<±0.1%
|
|
NON LINEARITY NON REPEATABILITY |
≤ ±0.03% ≤ ±0.03% |
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.030% |
|
NOMINAL POWER SUPPLY |
4-20mA and ±5V → 12-24Vdc
±10V → 18-24Vdc |
|
MAX. POWER SUPPLY MAX. ABSORPTION (without load applied) LOADING RESISTANCE: a) tension b) current INSULATION RESISTANCE ZERO BALANCE
|
28Vdc
30mA
from 0 to 470? >2 G? ± 1% |
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% |
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C
-10/+40 °C
-20/+70 °C
-20/+80 °C
|
|
WEIGHT
PROTECTION CLASS (EN 60529) |
?57:～1.5 kg ?82:～4.2 kg 20t:~5kg IP67 Acciaio Inox / Stainless Steel5m |
|
RECOMMENDED KNUCKLE JOINTS |
DURBAL EM 20 – EM 30 – EM 42 |
Option
|
CONNECTOR OUTPUT |
MIL-C-26482 6 Poles Male connector |
|
CONNECTOR OUTPUT |
M12 4 Poles Male connector |
|
ELECTRICAL CONNECTION |
Female 4 poles straight M12x1 CONNECTOR complete
PVC molded CABLE, shielded, length: 3m
|
