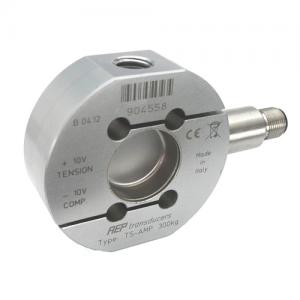

10kg to 7.5t Amplified Load Cell - TSAMP
4-20mA, 5Volt, 10Volt Output Load Cell
Nominal Load from 10 kg to 7.5 t
Linearity: 0.03%
Material: Stainless Steel
Output: 4-20mA, 5Volt, 10Volt
Protection: IP65
- Model Number: TSAMP
- Data Sheet:
- Quantity:
- - +
Product Specification
TSAMP
4-20mA, 5Volt, 10Volt Output 10kg to 7.5t Amplified Load Cell

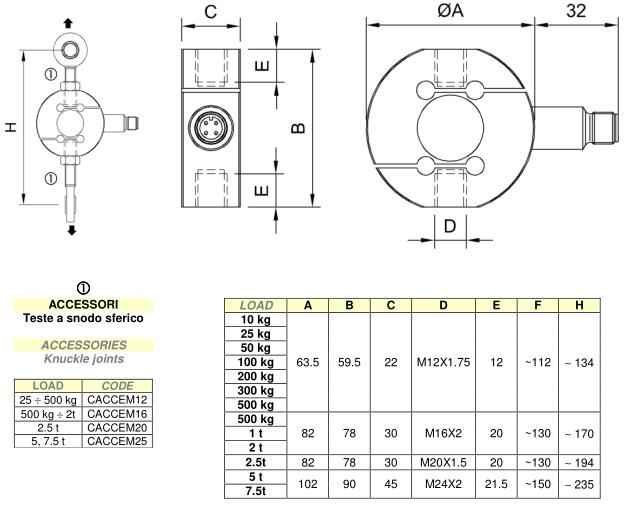

Dimensions [mm]
Technical Data
| ACCURACY |
0.03% |
|
NOMINAL LOAD (Emax) |
10 - 25 - 50 -100 - 200 - 300 - 500 kg
1 - 2 - 2.5 - 5 -7.5 t
|
|
NOMINAL SENSITIVITY CALIBRATION TOLERANCE |
4-20 mA (3 wires), ±5V* or ±10V*
<±0.1%
|
|
NON LINEARITY NON REPEATABILITY |
≤ ±0.023% ≤ ±0.015% |
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.028% |
|
NOMINAL POWER SUPPLY |
4-20mA and ±5V → 12-24Vdc
±10V → 18-24Vdc
|
|
MAX. POWER SUPPLY MAX. ABSORPTION (without load applied) LOADING RESISTANCE: a) tension b) current INSULATION RESISTANCE ZERO BALANCE RESPONSE FREQUENCY |
28Vdc
30mA
from 0 to 470? >2 G? ± 1% from 0.5 to 5 kHz |
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% 120%150% >300% 100% 50% ～ 0.2 mm |
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
|
WEIGHT
PROTECTION CLASS (EN 60529) |
～ 0.6 kg | ～ 1.2 kg | ～ 2.6 kg
IP65 |
|
RECOMMENDED KNUCKLE JOINTS |
DURBAL EM12 – EM 17 - EM20 - EM25 |
Option
|
CONNECTOR OUTPUT |
MIL-C-26482 6 Poles Male connector |
|
CABLE OUTPUT |
5 m |
