100kg to 200t Amplified load cell - C2SAMP

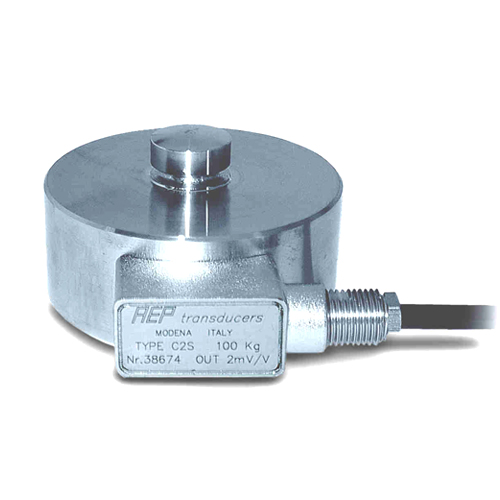

100kg to 200t Load Cells C2SAMP
Linearit: 0.03%
Material: Stainless Steel
Output: 4-20mA, 5V, 10V
Protection: IP68
- Model Number: C2SAMP
- Data Sheet:
- Quantity:
- - +
Product Specification
C2SAMP
100kg to 200t Amplified load cell

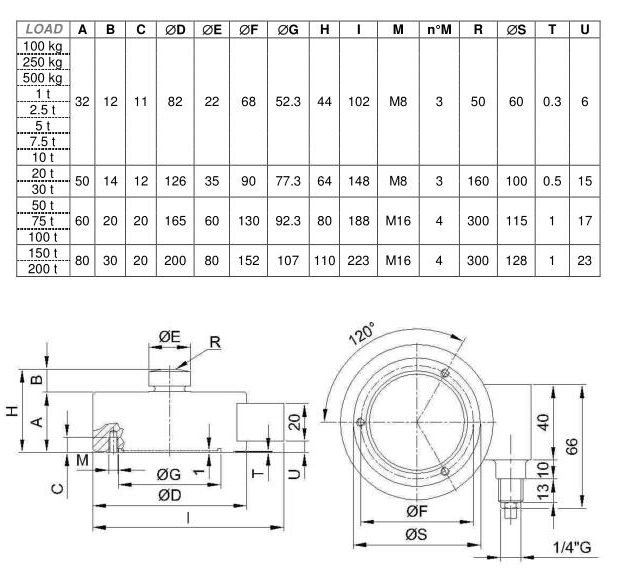

Dimensions [mm]
Technical Data
|
ACCURACY |
0.03% |
|||
|
NOMINAL LOAD (Emax) |
100-250-500 kg
1-2.5-5-7.5-10 t
|
20 t
30 t
|
50-75t
100 t
|
150t
200t
|
|
NOMINAL SENSITIVITY CALIBRATION TOLERANCE |
4-20 mA (3 wires), 0…5V or 0…10V
<±0.1%
|
|||
|
NON LINEARITY NON REPEATABILITY |
≤ ±0.03% ≤ ±0.01% |
|||
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.024% ≤ ±0.017% |
|||
|
NOMINAL POWER SUPPLY |
4-20mA and 0…5V → 12-24Vdc 0….10V → 18-24Vdc |
|||
|
MAX. POWER SUPPLY MAX. ABSORPTION (without load applied) LOADING RESISTANCE: a) tension b) current INSULATION RESISTANCE ZERO BALANCE RESPONSE FREQUENCY |
28Vdc
30mA
from 0 to 470? >2 G? ± 1% from 0.5 to 5 kHz |
|||
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% 120%150% >300% 100% 50% ~0.06 mm | ~0.16 mm | ~ 0.23 mm | ~0.36mm |
|||
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE WEIGHT
PROTECTION CLASS (EN 60529) |
+23°C
-10/+40 °C
-20/+70 °C
-20/+80 °C
~1.3 kg | ~3.4 kg | ~9.4 kg | ~18.2kg
IP68 (100h at 1m water column) |
|||
|
FIXING SCREWS a) diameter b) resistance class c) tightening torque |
M8 |
M8 |
M16 |
M16 |
