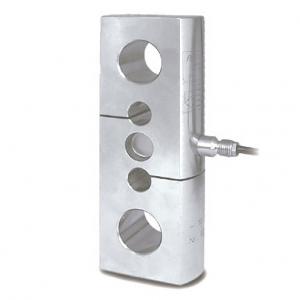

5t to 20t Load Cell - T20
5t to 20t Load Cell T20
Nominal Load from 5t to 20t
Class (OIML R60) C2 and C3
Combined Error: 0.019%
Output: 2mV/V
- Model Number: T20
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
T20
5t to 20t Load Cell

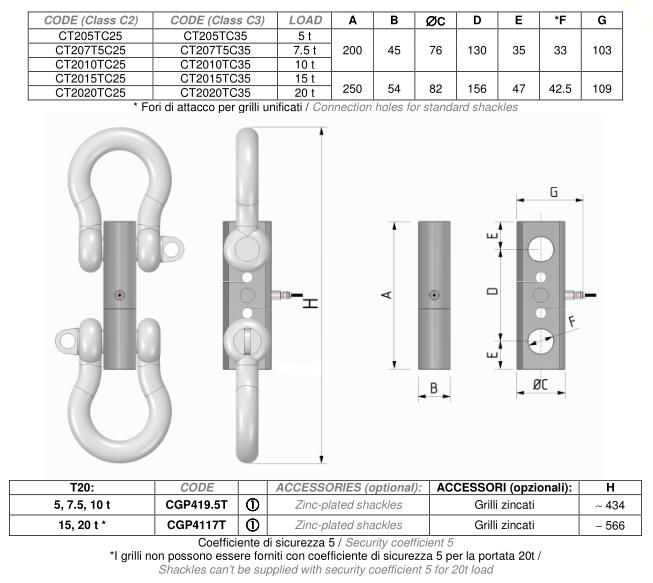

Dimensions
Technical Data
|
ACCURACY CLASS: OIML R60 |
C2 |
C3 |
|
LEGAL DIVISIONS |
2000 |
3000 |
|
NOMINAL LOAD (Emax) |
5 - 7.5 - 10 - 15 - 20 t |
|
|
MINIMUM VERIFICATION INTERVAL (Vmin) |
Emax / 10000 |
|
|
COMBINED ERROR NON REPEATABILITY ZERO RETURN over 30 min. CREEP to nominal load: a) over 30 min. b) over 20 and 30 min. |
≤ ±0.023%
≤ ±0.014%
≤ ±0.030%
≤ ±0.024%
≤ ±0.011%
|
≤ ±0.019% ≤ ±0.011% ≤ ±0.013%
≤ ±0.008% |
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.028% |
≤ ±0.016% |
|
NOMINAL SENSITIVITY SENSIVITY TOLERANCE |
2mV/V ≤ ±0.1% |
|
|
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
420 ± 20 ? 350 ± 2 ? > 5 G ? ≤ ± 1% 10 V 1-15 V 18 V |
|
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% |
|
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C
-10/+40 °C
-20/+70 °C
-20/+80 °C
|
|
|
WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
~ 4.4 kg ~ 7.0 kg IP68 (100h at 1m water column) Acciaio Inox / Stainless Steel 5m |
|
