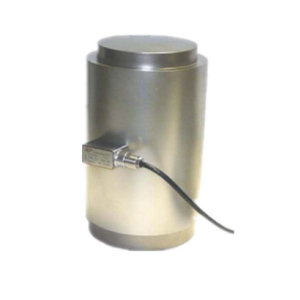

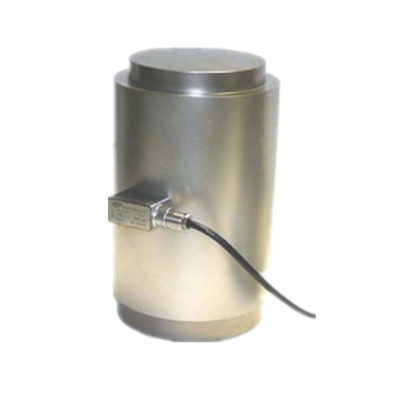

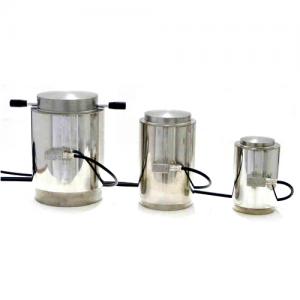

30t to 500t Load Cell - CLS
Nominal Load from 30t to 500t
Class (OIML R60) C1 and C2
Combined Error: 0.023%
Output: 2mV/V
- Model Number: CLS
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
CLS
30t-500t Load Cell
Dimensions
Technical Data
|
ACCURACY CLASS: OIML R60 |
C1 |
C2 |
|
|
LEGAL DIVISIONS |
1000 |
2000 | |
|
NOMINAL LOAD (Emax) |
30, 60, 100, 200, 300, 500 t |
||
|
MINIMUM VERIFICATION INTERVAL (Vmin) |
Emax / 10000 |
||
|
COMBINED ERROR NON REPEATABILITY ZERO RETURN over 30 min. CREEP at nominal load: a) over 30 min. b) over 20 and 30 min. |
≤ ±0.045%
≤ ±0.015% ≤ ±0.036%
≤ ±0.035%
≤ ±0.010%
|
≤ ±0.023%
≤ ±0.010%
≤ ±0.026%
≤ ±0.028%
≤ ±0.008%
|
|
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.030%
≤ ±0.030%
|
≤ ±0.024%
≤ ±0.017%
|
|
|
NOMINAL SENSITIVITY CALIBRATION TOLERANCE |
2mV/V
≤ ±0.1%
|
||
|
NOMINAL LOAD Input resistance Output resistance |
30, 60, 100t
700 ± 2?
700 ± 2?
|
||
|
NOMINAL LOAD Input resistance Output resistance |
200, 300, 500t
350 ± 2?
350 ± 2?
|
||
|
INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
> 5 G?
≤ ±1% FS
10 V
1÷15 V
18 V
|
||
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load |
0% 120%150% > 300% 50% |
||
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE WORKING TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
||
|
NOMINAL LOAD WEIGHT |
30, 60, 100t
～ 7 kg
|
200, 300t
~16 kg
|
500t
~31kg
|
|
PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
IP68
Acciaio Inox / Stainless Steel
5m
|
||
Options
|
CONNECTOR OUTPUT PROTECTION CLASS (EN 60529) |
MIL-C-5015 7 poles male
IP65
|
