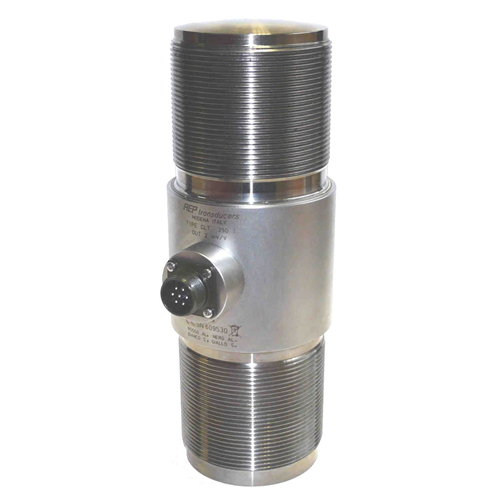

100t to 250t Load Cell - CLT
100t to 250t Load Cell Load Cell CLT
Nominal Load from 100 to 250 t
Class (OIML R60) C1 and C2
Combined Error: 0.1%
Linearity: 0.10%
Material: Stainless Steel
Output: 2mV/V
Protection: IP65
- Model Number: CLT
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
CLT
100t to 250t Load Cell?

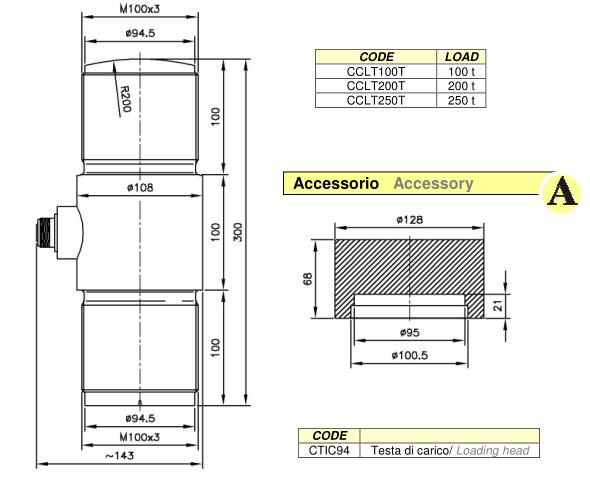

Dimensions ?[mm]
Technical Data
|
ACCURACY CLASS: |
0.1% |
|
LINEARITY and HYSTERESIS |
0.1% |
|
NOMINAL LOAD |
100 - 200 - 250 t |
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.028% |
|
NOMINAL SENSITIVITY CALIBRATION TOLERANCE |
2mV/V (1) ≤ ±0.1% |
|
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
800 ± 20? 700 ± 2? > 5 G? ≤ ±1% 10 V 1÷15 V 18 V |
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load |
0% |
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE WORKING TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
|
WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL |
～ 18 kg IP65 Stainless Steel |
|
CONNECTION |
MIL 7 poles male connector |
