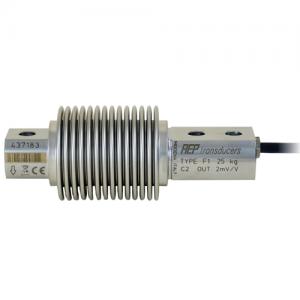

2.5kg to 200kg Load Cell - F1
2.5kg to 200kg Load Cell F1
Nominal Load from 2.5kg to 200kg
Class (OIML R60): C2, C3
Combined Error: 0.020%
Material: Stainless Steel
Output: 2mV/V
Protection: IP67
- Model Number: F1
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
F1
2.5kg to 200kg Load Cell

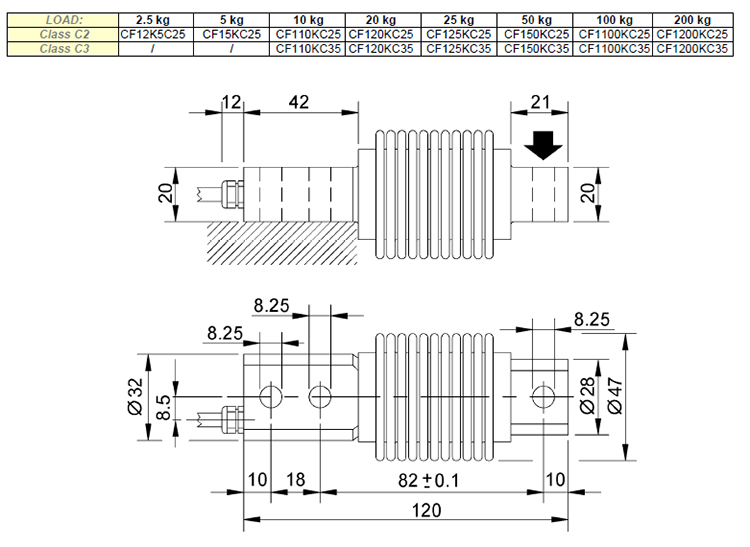

Dimensions [mm]
Technical Data
|
ACCURACY CLASS: OIML R60 |
C2 |
C3 |
|
LEGAL DIVISIONS |
2000 | 3000 |
|
NOMINAL LOAD (Emax) |
2.5 - 5 - 10 kg 20 - 25 - 50 kg 100 - 200 kg |
10 - 20 kg 25 - 50 kg 100 - 200 kg |
|
MINIMUM VERIFICATION INTERVAL (Vmin) |
Emax / 10000 |
|
|
COMBINED ERROR NON REPEATABILITY ZERO RETURN over 30 min. CREEP to nominal load: a) over 30 min. b) over 20 and 30 min. |
≤ ± 0.026 % ≤ ± 0.012 % ≤ ± 0.025 %
≤ ± 0.010 % |
≤ ± 0.020 % ≤ ± 0.010 % ≤ ± 0.015 %
≤ ± 0.009 % |
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ± 0.025 % |
≤ ± 0.012 % |
|
NOMINAL SENSITIVITY SENSIVITY TOLERANCE |
2 mV/V
≤ ± 0.1 %
|
|
|
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
420 ± 20 ? 350 ± 2 ? > 5 G ? ≤ ± 1 % 10 V 1 - 15 V 18 V |
|
|
MECHANICAL LIMIT VALUES REFERRED TO NOMINAL LOAD: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0 % |
|
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+ 23 °C -10 / +40 °C -20 / +70 °C -20 / +80 °C |
|
|
WEIGHT |
～ 0.62 kg |
|
|
PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
IP67 Acciaio Inox / Stainless Steel 5m |
|
|
FIXING SCREWS: a) diameter b) resistance class c) tightening torque |
M8 12.920 Nm |
|
