350kg to 5t Weighing Unit - UPFT1
350kg to 5t Weighing unit UPFT1
Nominal Load from 350kg to 5t
Combined Error: 0.03%
Output: 2mV/V
- Model Number: UPFT1
- Data Sheet:
- Quantity:
- - +
Product Specification
UPFT1

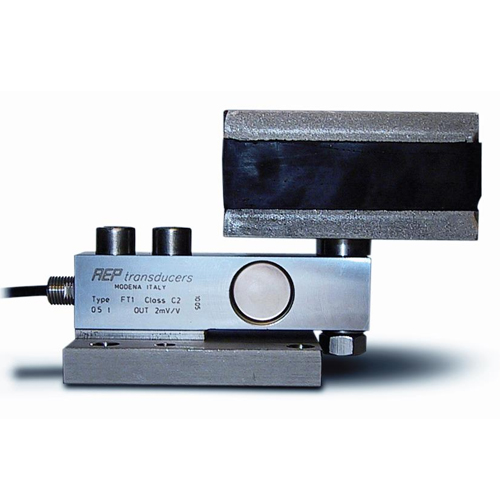

350kg to 5t Weighing Unit
This weighing unit, executed in (AISI 304) stainless steel, is designed to ease the installation of weighing and batching systems in tanks, silos, static hoppers or even subjected to vibrations.

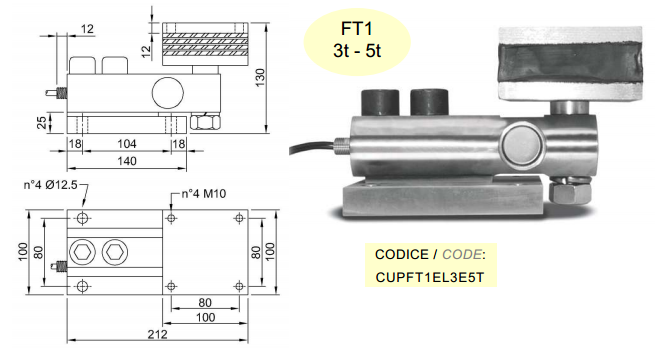

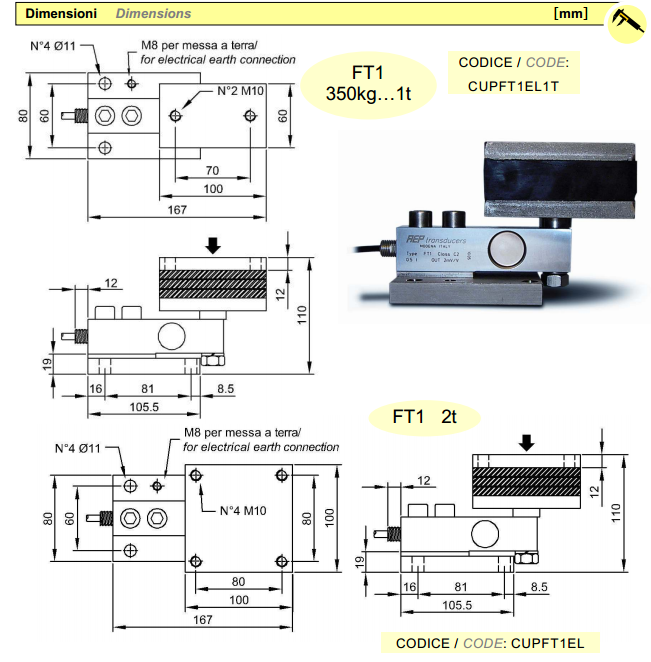

A FT1 load cell can be paired to every unit, to guarantee an accuracy class of 2000 or 3000 divisions and an IP68 protection class.
The weighing unit is provided with an elastomer bearing to preserve excellent features even in event of settlings, thermal dilation, positioning error, transverse thrusts and deformations or vibrations of structures.
Low profile
Long term high stability
Easy application
