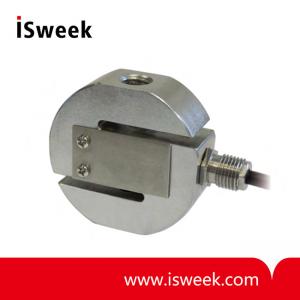

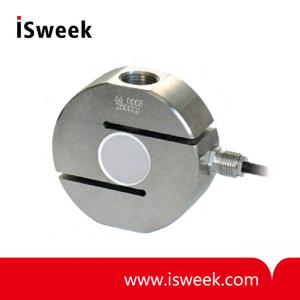

50kg to 5000kg Tension (Compression) Load Cells - CTOL
? AISI 420 stainless steel

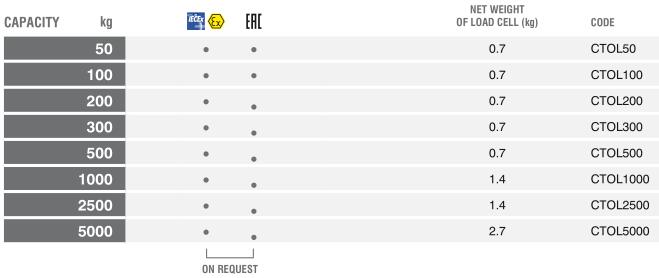

? Nominal load (E max)?: 50 - 100 - 200 - 300 - 500 - 1000 - 2500 - 5000 kg?
? Combined erro?r ≤ ±0.03%
? Protection class? IP67
? Rated output: 2 mV/V ±0.4%
- Model Number: CTOL
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
CTOL
Tension (Compression) Load Cells
? AISI 420 stainless steel
? Combined error ≤ ±0.03%
? Protection class IP67
CTOL Tension (Compression) Load Cells TECHNICAL FEATURES
|
Material |
AISI 420 stainless steel |
|
Nominal load (E max) |

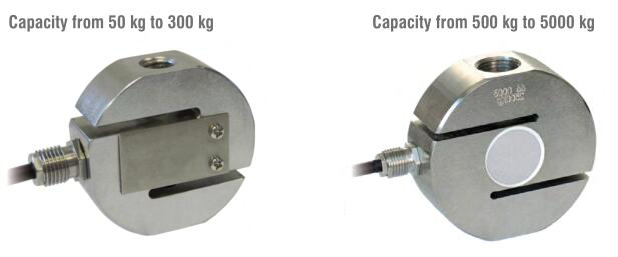

50 - 100 - 200 - 300 - 500 - 1000 - 2500 - 5000 kg |
|
Combined error |
≤±0.03% |
|
Protection class |
IP67 |
|
|
|
|
Rated output |
2 mV/V ±0.4% |
|
Temperature effect on zero |
0.0025% °C |
|
Temperature effect on span |
0.0025% °C |
|
Compensated temperature range |
-10 °C / +40 °C |
|
Operating temperature range |
-20 °C / +60 °C |
|
Creep at nominal load in 30 minutes |
0.03% |
|
Max supply voltage without damage |
15 V |
|
Input resistance |
385 Ω ±30 |
|
Output resistance |
350 Ω ±10 |
|
Zero balance |
±2% |
|
Insulation resistance |
>2000 MΩ |
|
Safe overload (% of full scale) |
150% |
|
Ultimate overload (% of full scale) |
250% |
|
Deflection at nominal load |
0.4 mm |
CTOL Tension (Compression) Load Cells ELECTRICAL CONNECTIONS
|
Cable lenght |
5 m |
|
Cable diameter |
6 mm |
|
Cores |
4/6 x 0.20 mm2 |
