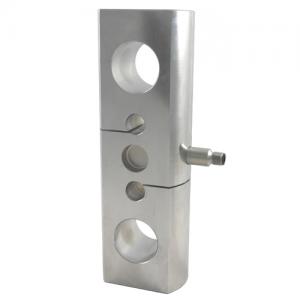

5t to 20t Amplified Load Cell - T20AMP
5t to 20t Load Cell T20AMP
Nominal Load from 5t to 20t
Accuracy 0.03%
Linearity and Hysteresis 0.03%
Standar output M12 connector
- Model Number: T20AMP
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
T20AMP
5t to 20t Amplified Load Cell

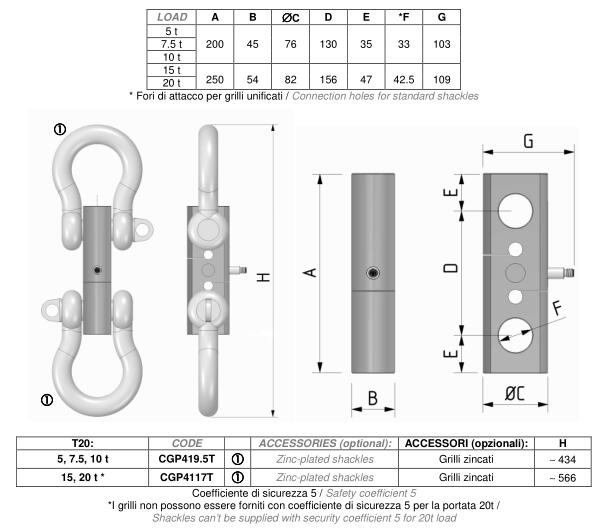

Dimensions
Technical Data
|
ACCURACY |
0.03% |
|
NOMINAL LOAD (Emax) |
5 - 7.5 - 10 - 15 - 20 t |
|
NOMINAL SENSITIVITY CALIBRATION TOLERANCE |
4-20 mA (3 wires), 0..+5V or 0…+10V <±0.1% |
|
NON LINEARITY NON REPEATABILITY |
≤ ±0.03% ≤ ±0.03% |
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.030% |
|
NOMINAL POWER SUPPLY
|
4-20mA and 0…5V → 12-24Vdc
0….10V → 18-24Vdc
|
|
MAX. POWER SUPPLY MAX. ABSORPTION (without load applied) LOADING RESISTANCE: a) tension b) current INSULATION RESISTANCE ZERO BALANCE |
28Vdc
30mA
min. 3K?
from 0 to 470?
>2 G?
± 1%
|
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% |
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
|
WEIGHT
PROTECTION CLASS (EN 60529) |
?76:～4.4 kg ?82:～7 kg
IP65 |
Option
|
CONNECTOR OUTPUT |
MIL-C-26482 6 Poles Male connector |
|
CABLE OUTPUT |
5 m |
