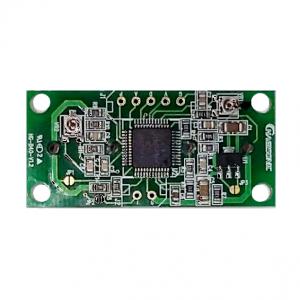

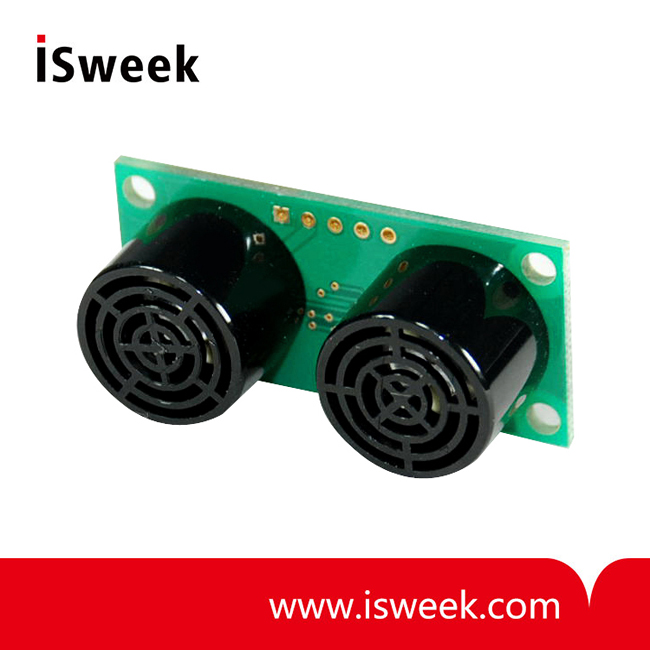

Combi ASIC Ultrasonic Sensor & Module - HG-B40A, HG-B40C
? Low-power, high-sensitivity module
? Receiver Output Signal: Analog ±2 V max at 2.5 V Base Line
? Choose from a wide variety of input/output Mode.
? Detecting Range:
0~3 m (Conventional, HG-B40C) (at 5Vdc)
0~6 m (Conventional, HG-B40C) (12 Vdc)
0~3 m (Anistropic, HG-B40A) (12 Vdc)
- Model Number: HG-B40A, HG-B40C
- Data Sheet:
- Quantity:
- - +
Product Specification
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Features
? Low-power, high-sensitivity module.
? Choose from a wide variety of input/output Mode.
? Auto sensitivity control function as a distance proportional to the distance error captain.
? The same standards as existing foreign products and mutually replaceable.
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Specification
|
Frequency (KHz) |
40±2 |
|
|
Transmit Mode |
Free Run |
No Connection |
|
External Trigger |
TTL Pulse (100~700 ?) |
|
|
Repetition Rate (10~30 time / sec) |
||
|
Receiver Output Signal |
Analog |
±2 V max at 2.5 V Base Line |
|
Real Time Pulse |
4~5 V TTL, All the objects detected |
|
|
Distance Pulse |
4~5 V TTL Only the nearest Object |
|
|
Input DC & Detecting Range (at in front angle flat plate) |
Low Voltage Type (5 V dc) |
0~3 m (Conventional, HG-B40C) |
|
High Voltage Type (12 V dc) |
0~6 m (Conventional, HG-B40C)
0~3 m (Anistropic, HG-B40A) |
|
