Product Specification

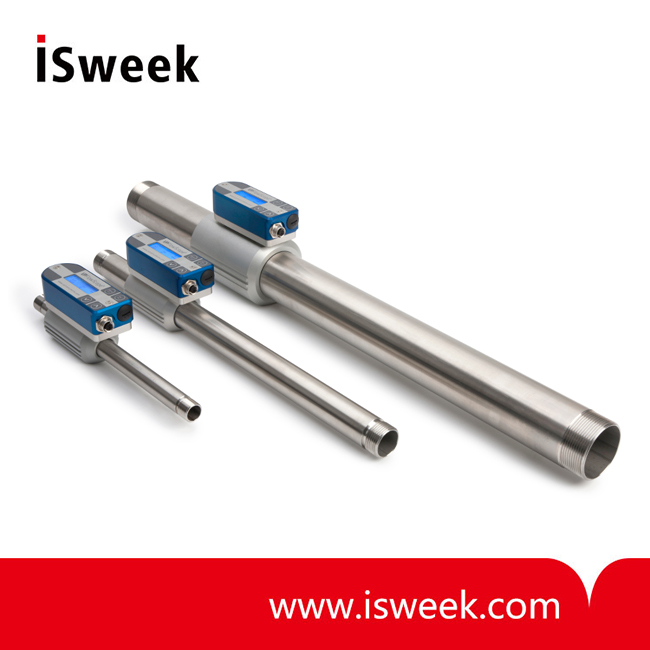

VPFlowScope in-line Compressed Air Flow Meters Description
The VPFlowScope in-line is the ideal flow meter for point of use consumption measurement. It measures mass flow, temperature and pressure simultaneously and in both directions. The VPFlowScope in-line is perfect for smaller diameters where it produces all the data you need to optimize your compressed air consumption.  With the VPFlowScope? in-line you don’t only see your energy consumption, but you can also check the efficiency of your distribution network as well as your true savings potential. It provides all the necessary data to make the right decisions every day.

On the bright blue display you can see the real-time data but if you want more analyses, you can combine this instrument with the built-in data logger, which enables you to record for certain periods of time. When you install our VPStudio software on your PC, you are able to process data, print reports and make smart analyses to find out where and how you can save money in your organization.

VPFlowScope in-line Compressed Air Flow Meters Features and Benefits
? Thermabridge technology
? High dynamic range
? Three sensors in one instrument
? Standard Modbus and 4 … 20 mA
? Bi-directional
? Quick return on investment

VPFlowScope in-line Compressed Air Flow Meters Applications
? Point of use measurements
? Cost allocation
? Sub metering of compressed air
? Ring networks (bi-directional measurements)
? Leakage monitoring
? Air, nitrogen, carbon dioxide, argon: any dry and non-corrosive gas

VPFlowScope in-line Compressed Air Flow Meters Specifications

Flow sensor
(minimum detection level and max flow rate shown)
- VPS.R080.M050
0.23...80 m3n/hr
0.13…50 SCFM
- VPS.R250.M100
0.91...250 m3n/hr
0.54…150 SCFM
- VPS.R01K.M200
3.55...1000 m3n/hr
2.15…600 SCFM



Accuracy
0.5% FSS under calibration conditions with calibration report
5% FSS without calibration report
Reference conditions
0°C, 1013.25 mbar - DIN1343
32°F, 14.65 psi
Gas temperature
0....60°C
32..140°F
Gases
Compressed air, nitrogen, inert gases,
95% non condensing gases




Pressure sensor


Range
0...16 bar gauge
0…250 psi gauge
Accuracy
+/- 1.5% FSS (0...60°C)
+/- 1.5% FSS (32..140°F)



Temperature sensor


Range
0....60°C
32…140°F
Accuracy
+/- 1° (from 10 m n /sec and up) (At zero flow conditions, temperature
reading increases due to self-heating by the flow sensor)

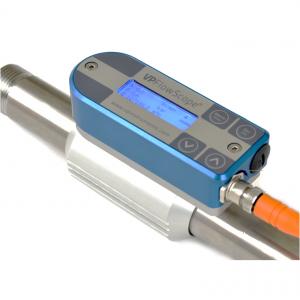

Display


Technology
Liquid crystal

Back light
Blue with auto power save

Memory
2 Million point memory option

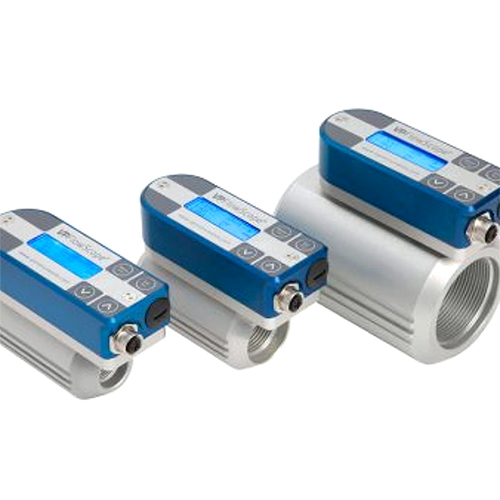

Mechanical


VPS.R080.M050
135mm x 50mm x 85mm 0.7 Kg

VPS.R250.M100
135mm x 50mm x 85mm 0.7 Kg

VPS.R01K.M200
155mm x 90mm x 125mm 1.6 Kg

IP grade
IP65 when mated to connector, at room temperature; direct rain and
sunlight should be avoided. Extreme temperature fluctuations may
affect the IP grade over time.
Ambient temperature
0..60°C
32 .. 140°F



Inputs and outputs


Analog
4..20mA or pulse, selectable via installation software
Serial IO
Modbus RTU
USB for configuration (display version only)
Supply
12..24 VDC +-10% CLASS 2 (UL)
Power consumption
150mA at 24VDC

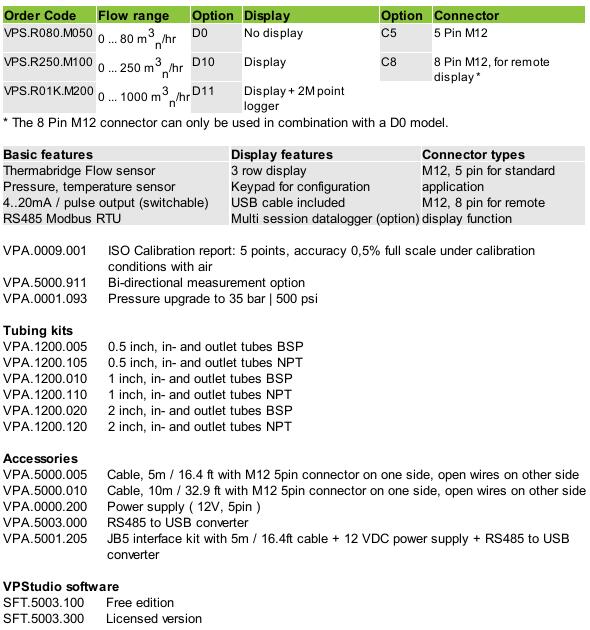

VPFlowScope in-line Compressed Air Flow Meters Order information and accessories
