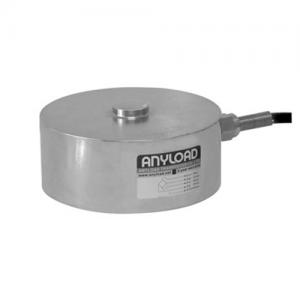

Compression Load Cell - 266AA / 266AH
? Material: Aluminum / Alloy steel
? 266AA Rated Capacities: 25kg, 50kg
? 266AH Rated Capacities: 100kg, 200kg, 300kg, 500kg, 1t, 2t, 5t, 10t, 20t, 30t
? Full Scale Output: 2mV/V ± 1%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP66 / IP67
? CE and RoHS certified
- Model Number: 266AA / 266AH
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification

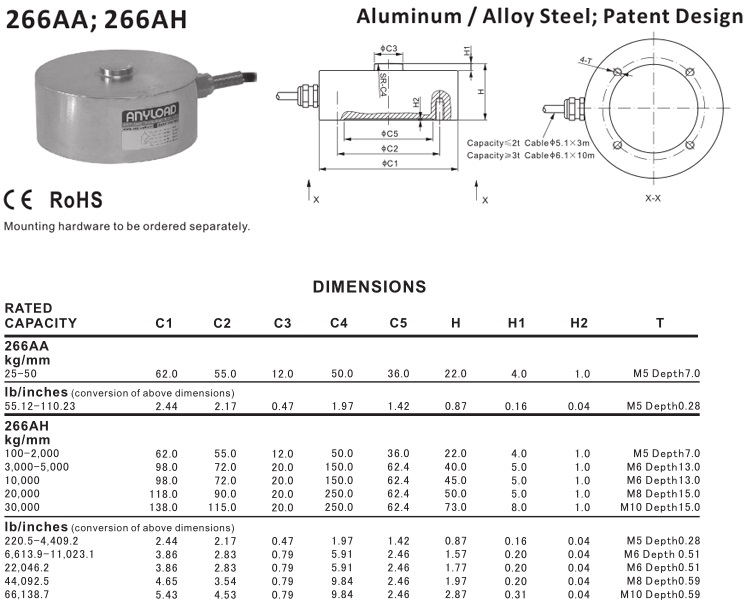

266AA / 266AH Compression Load Cell
266AA / 266AH Compression Load Cell Specification
|
Full Scale Output |
2 mV/V ±1% |
|
Zero Balance |
<±0.02 mV/V |
|
Non-linearity |
Cap.≤2t: <±0.2%; Cap.≥3t: <±0.05% |
|
Repeatability |
Cap.≤2t: <±0.03%; Cap.≥3t: <±0.03% |
|
Hysteresis Error |
Cap.≤2t: <±0.1%; Cap.≥3t: <±0.05% |
|
Creep in 30 min. |
Cap.≤2t: <±0.1%; Cap.≥3t: <±0.05% |
|
Input Resistance |
Cap.≤2t: 400Ω±20; Cap.≥3t: 770Ω±30 |
|
Output Resistance |
Cap.≤2t: 350Ω±3; Cap.≥3t: 700Ω±5 |
|
Element Material |
Aluminum / Alloy Steel, Nickel Plated |
|
Recommended Excitation |
10V (15V Maximum) |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 50°C / 14°F to 122°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
266AA: Environmentally Sealed / IP66 |
|
266AH: Welded Seal / IP67 |
|
|
Cable Color Code |
Exc+ Red Exc- Black |
|
Sig+ Green Sig- White Shield Bare |
266AA / 266AH Compression Load Cell Part Number
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
25kg |
266AA-25kg |
0.3 |
|
50kg |
266AA-50kg |
0.3 |
|
100kg |
266AH-100kg |
0.5 |
|
200kg |
266AH-200kg |
0.5 |
|
300kg |
266AH-300kg |
0.5 |
|
500kg |
266AH-500kg |
0.5 |
|
1t |
266AH-1t |
0.5 |
|
2t |
266AH-2t |
0.5 |
|
3t |
266AH-3t |
2.4 |
|
5t |
266AH-5t |
2.4 |
|
10t |
266AH-10t |
2.4 |
|
20t |
266AH-20t |
4.2 |
|
30t |
266AH-30t |
8.3 |
