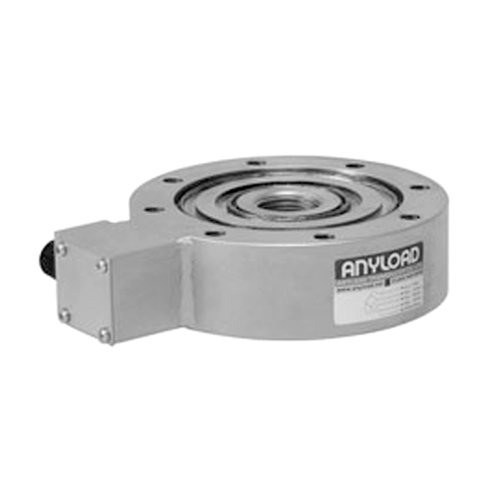

Compression Load Cell - 363YH
? Material: Alloy steel
? Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t
? Full Scale Output: 2mV/V ± 1%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? CE and RoHS certified
- Model Number: 363YH
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom

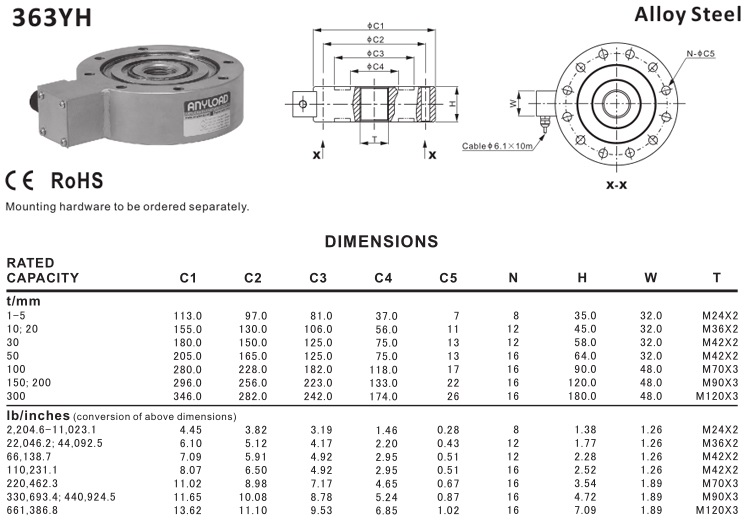

Product Specification
363YH Compression Load Cell
363YH Compression Load Cell Features
? Material: Alloy steel
? Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t
? Full Scale Output: 2mV/V ± 1%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? CE and RoHS certified
363YH Compression Load Cell Specification
|
Full Scale Output |
2.0 mV/V ±1% |
|
Zero Balance |
±0.02 mV/V |
|
Non-linearity |
Cap.≤5t: <±0.050%; Cap.≥10t: <±0.30% |
|
Repeatability |
Cap.≤5t: <±0.030%; Cap.≥10t: <±0.20% |
|
Hysteresis Error |
Cap.≤5t: <±0.050%; Cap.≥10t: <±0.30% |
|
Creep in 30 min. |
Cap.≤5t: <±0.050%; Cap.≥10t: <±0.10% |
|
Input Resistance |
770Ω±30 |
|
Output Resistance |
700Ω±5 |
|
Element Material |
Alloy Steel, Nickel Plated |
|
Recommended Excitation |
10V (15V Maximum) |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 50°C / 14°F to 122°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
Welded Seal / IP67 |
|
Cable Color Code |
Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare |
363YH Compression Load Cell Part Number
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
1t |
363YH-1t |
2.8 |
| 2t |
363YH-2t |
2.8 |
| 3t |
363YH-3t |
2.8 |
| 5t |
363YH-5t |
2.8 |
| 10t |
363YH-10t |
5.5 |
| 20t |
363YH-20t |
5.5 |
| 30t |
363YH-30t |
12.4 |
| 50t |
363YH-50t |
16.8 |
| 100t |
363YH-100t |
40.6 |
| 150t |
363YH-150t |
51.0 |
| 200t |
363YH-200t |
51.0 |
| 300t |
363YH-300t |
97.2 |
