Product Specification

RPS-100 Controller With Remote Sensing Head Features
? Various Sensing Ranges
? Broad Sensing Beam
? Low Frequency - 38.5kHz
? LED Indicator
? Small Transducer Head
? Remote Transducer
? RPS-500 Compatible
? 3 - Way Power Operation
? Isolated Form C Relay Output
? Small Electronic Controller

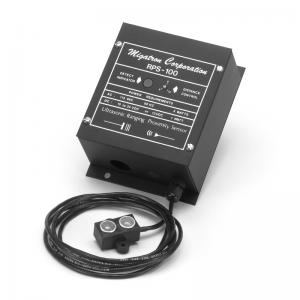

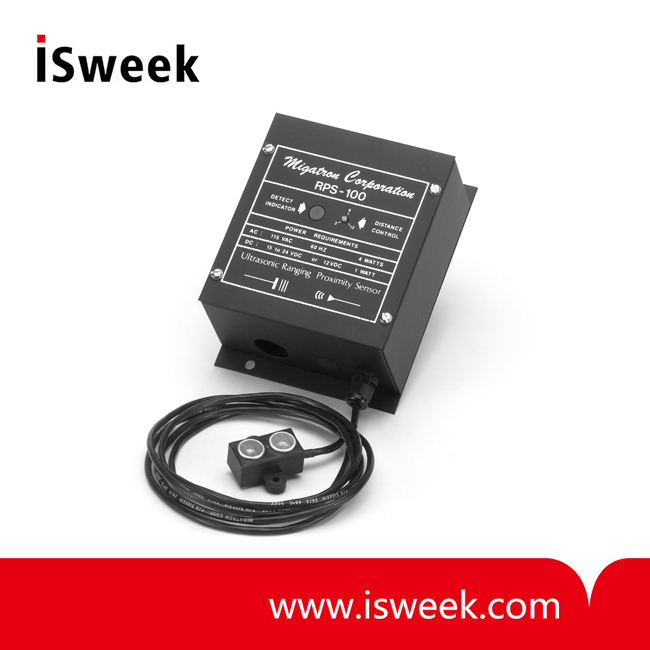

RPS-100 Controller With Remote Sensing Head Description
The RPS-100 is the first of the RPS series and has a proven track record of reliability. Since its introduction in 1979, the RPS-100 has proven itself in versatility and ease of operation. The remote transducer allows for mounting of the sensor head in cramped spaces while the controller is out of the way. The ranging and proximity modes provide the versatility of simple detection, or actual distance measuring.

The isolated form C relay furnishes N.O. and N.C. outputs, and with the addition of the RPS-500 card various analog outputs are supplied. The RPS-100 sensor, which operates at a frequency of 38.5kHz, has a broad sensing beam which allows for detection of an object at greater angles of tilt. Sensing ranges available for the RPS-100 include 2″ to 14″, 5″ to 72″, and 10″ to 240″. Mounting flanges, LED indicator, ranging potentiometer, and 6-ft. transducer cable are included. Optional cable lengths are available.

RPS-100 Controller With Remote Sensing Head Specifications
