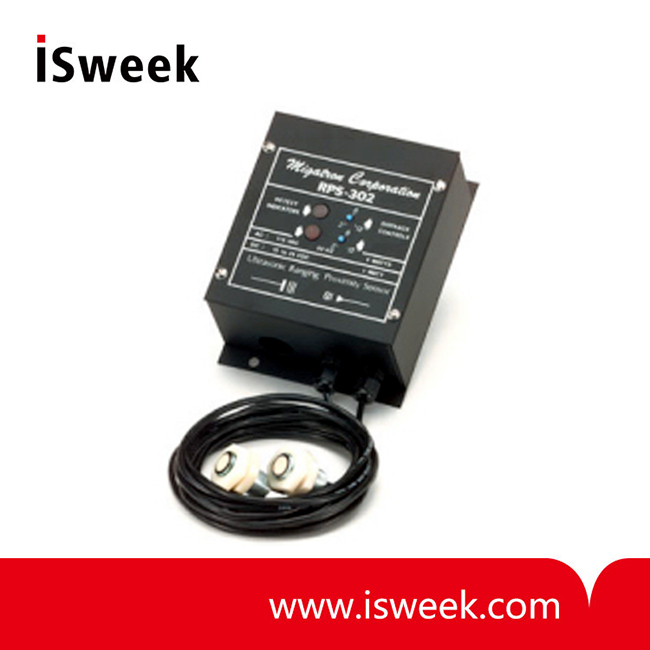

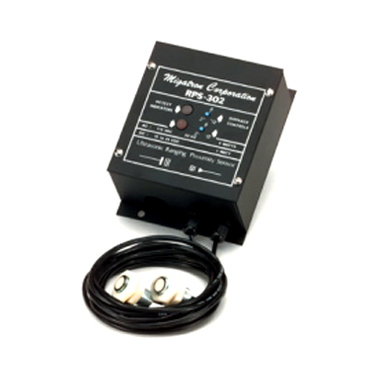

Controller With Remote Sensing Heads - RPS-302

? Ranges: 4-14", 5-36", 8-72"
? Power Input: 120VAC, 15 - 24VDC
? Input Current: 40 Milliamps
? Ambient Temperature: 0oC to 60oC or 32oF to 140oF
? Transducer Frequency: 222kHz for 14" and 36", 150kHz for 72"
? Narrow beam sensor On/off output
? Weight of Controller: 34.2 ounces
? Weight of Each Transducer: 2.2 ounces

Model Number: RPS-302
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RPS-302 Controller With Remote Sensing Heads Features
? Various Sensing Ranges
? Narrow Sensing Beam
? High Frequency
? 2-Way Power Operation
? Sealed Remote Transducers
? Adjustable Delay Controls
? 2 Multiplexed Transducers
? LED Indicators
? Isolated Form C Relay Outputs
? Small Electronic Controller

RPS-302 Controller With Remote Sensing Heads Description

The RPS-302 has 2 sealed, multiplexed transducers with independent range control adjustments, LED indicators, and form C relay outputs. This sensor also has a unique master and slave feature which enables many of the same units to be used within close proximity of one another without cross-talk interference. For example, if three sensors are needed in a close area, one sensor would be left as a master and the other two would be slaves. This is done by means of the X IN, X OUT, and GND connection on the board. One sensor (master) would send a signal by means of the X OUT and GND terminals.

These would be connected to the X IN and GND terminals of the other two sensors (slaves). With the sensors connected in this way, all units would be transmitting and receiving at the same time. This then would prevent cross-talk and enable all three sensors, or all six transducers, to be used at the same time in close proximity of one another. There are also separate turn ON and turn OFF DELAY potentiometers provided for each transducer. All four DELAY controls are located along side the black module inside the enclosure box. The remote transducers allow for mounting of the sensor heads in cramped spaces while the controller is out of the way. The (2) independent and isolated form C relays furnish N.O. and N.C. outputs. This sensor, operates at a frequency of 222kHz for the 14″ and 36″ ranges and 150kHz for the 72″ range. This sensor has a narrow sensing beam. Sensing ranges available for the RPS-302 include 4″ to 14″, 5″ to 36″ and 8″ to 72″. Mounting flanges, LED indicators, ranging potentiometers, and 6-ft. transducer cables are included. Optional cable lengths are available.

RPS-302 Controller With Remote Sensing Heads Specifications

Operational Range:	Adjustable 4" to 14" Adjustable 5" to 36" Adjustable 8" to 72"
Power Input:	120VAC 15 - 24VDC
Input Current:	40 Milliamps
Ambient Temperature:	0oC to 60oC or 32oF to 140oF
Controller:	Metal Enclosure
Transducer Housing:	Galvanized Steel in 14" & 36", Plastic in 72"
Transducer:	Silicone Rubber or Teflon Sensing Face
Output: N.O., N.C. for each transducer	Isolated Form C Relay .5 Amp Maximum at 120VAC
Transducer Frequency:	222kHz for 14" and 36", 150kHz for 72"
Adjustable Response Time: 4" to 14" 5" to 36" 8" to 80"	ON 30mS - 2S, OFF 30mS - 2S ON 50mS - 2S, OFF 50mS - 2S ON 60mS - 2S, OFF 60mS - 2S
Weight of Controller:	34.2 ounces
Weight of Each Transducer:	2.2 ounces
