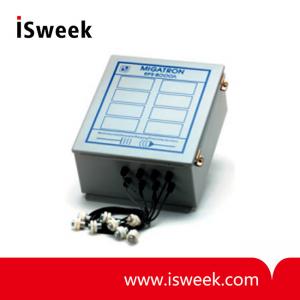

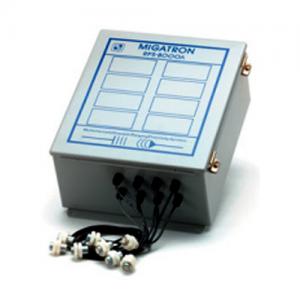

Controller With Remote Sensing Heads - RPS-8000A/RPS-8001A

? Ranges: 4-12", 5-36", 8-72"
? Power Input: 120 VAC or 15 to 24 VDC
? Input Current: 75mA max. AC, 600mA max. DC
? Ambient Temperature: 5oC to 49oC or 40oF to 120oF
? Humidity: 0% to 95% Non-condensing
? Multiplexed: 2-8 transducers
? Narrow beams sensor
? On/off output

  • Model Number: RPS-8000A/RPS-8001A
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Controller With Remote Sensing Heads
  • Controller With Remote Sensing Heads
Mouse over image to zoom
Share:

Product Specification

RPS-8000 Controller With Remote Sensing Heads Features
? Various Sensing Ranges
? Narrow Sensing Beam
? High Frequency
? LED Indicators
? Sealed Transducer
? Multiplexed 2 - 8 Transducers
? Analog Current and Voltage
? Isolated Form C Relay Outputs
? Temperature Compensation
? Small Remote Transducer


RPS-8000 Controller With Remote Sensing Heads Description

The RPS-8000A was designed for applications where 2 or more sensors are needed in a general area. The RPS-8000A can handle up to 8 TSR-3 transducers, and the RPS-8001A up to 8 SSR-3 transducers (stainless steel). These transducers are multiplexed so they can all operate in close proximity with each other without interference. Each sensor has three outputs: an analog voltage, analog current, and form C relay. The Analog outputs each have a zero and span control as well as an inverting switch if a decreasing signal with distance is desired. There is a 25 turn pot provided for each relay output so the detect point can be adjusted.

RPS-8000 Controller With Remote Sensing Heads Specifications

Operational Range:


Adjustable 4" to 12"
Adjustable 5" to 36"
Adjustable 8" to 72"
Power Input:
120 VAC or 15 to 24 VDC
Input Current:
75mA max. AC, 600mA max. DC
Ambient Temperature:
5oC to 49oC or 40oF to 120oF
Humidity:
0% to 95% Non-condensing
Enclosure:
    Controller

    Transducers


Metal Nema 12

TSR-3 Galvanized Steel Housing,

Silicone Rubber Sensing Face,
Epoxy Filled
SSR-3 303 Stainless Steel Housing,
302 Stainless Steel Sensing Face,
Epoxy Filled

Outputs:
8 N.O. N.C. Relays, one per sensor
.5 Amps at 120 VAC
Analog Voltage 2 to 10 VDC
Load 5K ohms or greater
Analog Current 4 to 20mA
Load 300 ohm or less
Zero and Span Controls
Inverting capability
Response Time:
12mSec. Standard per channel
User Selectable 6, 7, 9, 12mSec.
Accuracy:
+- .040" or +- .3% of range which
ever is greater at 40o - 120o F
Weight:
    Controller
    TSR-3
    SSR-3-72

22 lbs.
4.5 oz.
5.5 oz.


PART NUMBER
RANGE
OUTPUT
RPS-8000A-12
RPS-8000A-36
TSR-3
RPS-8000A-72
TSR-3-72

4" - 12"
5" - 36"

8" - 72"

8 Channel System, Analog outputs, Form C Relays, Temp. Comp.
8 Channel System, Analog outputs, Form C Relays, Temp. Comp.
Transducer for RPS-8000A, Galvanized Steel, Silicone Face
8 Channel System, Analog outputs, Form C Relays, Temp. Comp.
Transducer for RPS-8000A, Galvanized Steel, Silicone Face
RPS-8001A-72
SSR-3-72
8" - 72"

8 Channel System, Analog outputs, Form C Relays, Temp. Comp.
Transducer for RPS-8001A, 303 Stainless, 302 Stainless Face
