Dew Point Sensor - Extreme Dry Air - VPA.8000.1003

Dew point range: -100 ~ +20°C (-148 ~ 68°F) dew point
Temperature: -40 ~ +60°C (-40 ~ 140°F)
Humidity: 0 ~ 100% RH
Pressure: 450 barg maximum
Output: 4 - 20 mA (2-wire) current source, configurable over the entire range
Power supply: 12 - 28 VDC
Dimensions: L=132 mm x ? 27 mm | 5.2 x 1.1"

Model Number: VPA.8000.1003
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

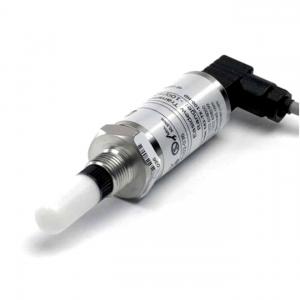

Mouse over image to zoom

Product Specification

VPA.8000.1003 Dew Point Sensor Product Description
VPInstruments’ dew point transmitters are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible. The calibrated transmitters can be instantly incorporated into VPVision or they can be connected to your air or gas management and control system.

Maintaining the dew point of your air or gas system will prolong the life of your equipment. Permanent monitoring enables you to detect and prevent problems in time.

VPA.8000.1003 Dew Point Sensor Features and benefits
2-wire loop powered connection
Dew point or ppm moisture content
IP66 (NEMA 4X)
Excellent sensor protection
Fast response time

VPA.8000.1003 Dew Point Sensor Application
Extreme dry air

VPA.8000.1003 Dew Point Sensor Specifications

Performance
Measurement range	-100 ... +20°C \| -148 ... 68 °F dew point
Accuracy (dew point)	±2°C \| ±3.6 °F dew point
Response time	5 mins to T95 (dry to wet)
Electrical output/input
Output signa	4 ... 20 mA (2-wire) current source, configurable over the entire range
Supply voltage	12-28VDC
Current consumption	20mA max
Supply voltage influence	±0.005% RH/V
operating conditions
Operating humidity	0 ... 100% RH
Operating temperature	-40 ... +60°C \| -40 ... 140 °F
Operating pressure	450 barg max.
Temperature coefficient	Temperature compensated across operating temperature range
Mechanical specifications
Ingress protection	IP65 \| NEMA 4
Housing material	Stainless steel
Dimensions	L=132mm x ?27mm \| 5,2 x 1,1"
Filter	HDPE Guard <10 μm
Process connection	5/8" - 18 UNF
Connection	DIN connector
