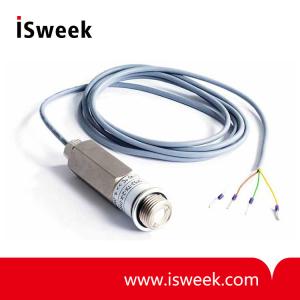

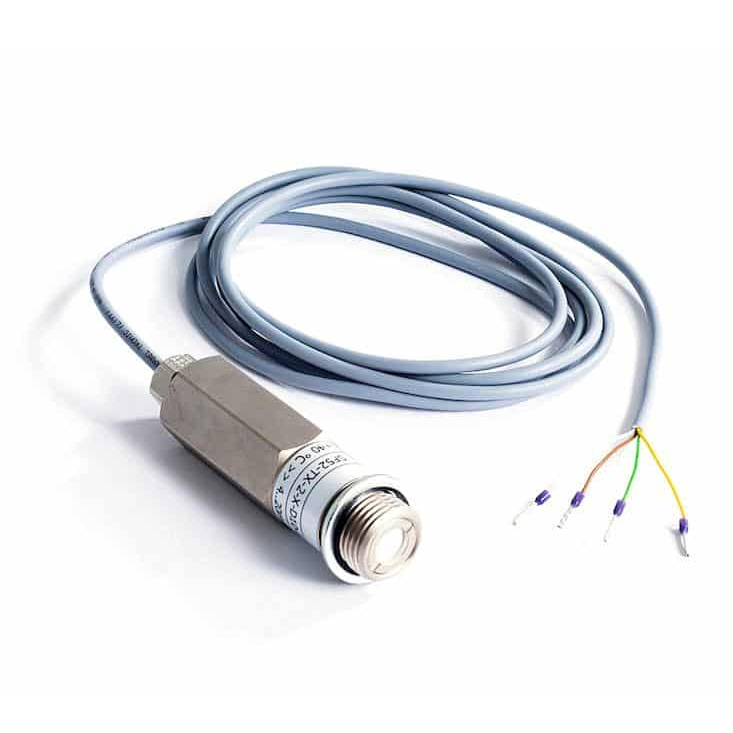

Dew Point Sensor - Moderate Dry Air - VPA.8000.1013

Dew point range: -40 ~ +60°C (-40 ~ 140°F) dew point
Temperature: -30 ~ +70°C (-22 ~ 158°F)
Humidity: 0 ~ 95% RH (non-condensing)
Pressure: 20 barg maximum
Output: 4 - 20 mA 3-wire
Power supply: 8 - 30 VDC
Dimensions: L = 85mm, ? 24 mm (max) | 3.3 x 0.9"

  • Model Number: VPA.8000.1013
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Dew Point Sensor - Moderate Dry Air
  • Dew Point Sensor - Moderate Dry Air
Mouse over image to zoom
Share:

Product Specification

VPA.8000.1013?Dew Point Sensor?Product Description
VPInstruments’ dew point sensors are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible. The calibrated transmitters can be instantly incorporated into VPVision or they can be connected to your air or gas management and control system.

Maintaining the dew point of your air or gas system will prolong the life of your equipment. Permanent monitoring enables you to detect and prevent problems in time. ?We offer various models which meet both moderate dry air (refrigerant dryer) and extreme dry air (dessicant dryer) applications.

VPA.8000.1013?Dew Point Sensor?Features and benefits
For moderate dry air
3-wire loop powered connection
Dew point or ppm moisture content
IP66 (NEMA 4X)
Excellent sensor protection
Fast response time

VPA.8000.1013?Dew Point Sensor?Application
Moderate dry air (refrigerant dryer)

VPA.8000.1013?Dew Point Sensor?Specifications

Performance
Measurement range
-40 ... +60°C | -40 ... 140 °F dew point
Accuracy (dew point)
±2°C | ±3.6 °F dew point
Response time
<10 sec typical (90% of the step change)
Electrical output/input
Output signa
4 ... 20mA (3-wire)
Supply voltage
8-30VDC
Current consumption
9mA + load current
Supply voltage influence
±0.005 % RH/V
operating conditions
Operating humidity
0 ... 95% RH (non-condensing)
Operating temperature
-30 ... +70°C | -22 ... + 158 °F
Operating pressure
20 barg maximum
Temperature coefficient
±0.05 %/°C
Mechanical specifications
Ingress protection
IP65 | NEMA 4
Housing material
Nickel-coated brass
Dimensions
L=85mm, ?24mm (max) | 3,3 x 0,9"
Filter
HDPE front filter
Process connection
G1/2 (1/2" BSP)
Connection
2 m | 6.5 Feet
