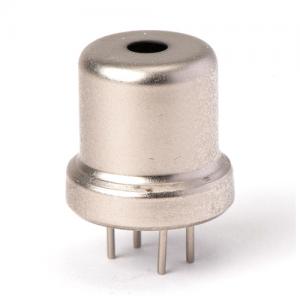

Flammable Gas Sensors for Industrial Applications - NAP-100AC
Supply voltage: 2.6V
Current: 160~ 180mA
Ambient temp. & humidity in operation: -10~ +50℃; 95%RH or less
Applications: For higher conc.
Target gases: Flammable
Detection range in high accuracy: 3~ 100%LEL
- Model Number: NAP-100AC
- Data Sheet:
- Quantity:
- - +
Product Specification
NAP-100 series are flammable gas sensors for industrial applications, and 4 types are provided for users’ choice. For detailed technical information, please refer to the individual user’s manuals.
* Ratings and gas sensitivity
|
Items |
NAP-100AM |
NAP-100AC |
NAP-100AD |
NAP-100AH |
|
Supply voltage |
2.6V |
2.6V |
2.6V |
1.6V |
|
Current |
160~ 180mA |
160~ 180mA |
160~ 180mA |
120~ 140mA |
|
Ambient temp. & humidity in operation |
-10~ +50℃
95%RH or less |
-10~ +50℃
95%RH or less |
260℃ or less
95%RH or less |
260℃ or less
95%RH or less |
|
Ambient temp. & humidity in storage |
-20~ +60℃
99%RH or less |
-20~ +60℃
99%RH or less |
-20~ +60℃
99%RH or less |
-20~ +60℃
99%RH or less |
|
Applications |
Universal type |
For higher conc. |
For high temp. |
For H2 only |
|
Target gases |
Flammable |
Flammable |
Flammable |
H2、CO |
|
Detection range in high accuracy |
1~ 50%LEL |
3~ 100%LEL |
1~ 50%LEL |
1~ 50%LEL |
