Higher Temperature Resistivity Flammable Gas Sensors - NAP-56A

Supply voltage: DC 2.5±0.25V; AC 2.5±0.25V (RMS 50-60Hz)
Current (2.5V applied): DC 150-170mA; AC 150-170mA (RMS 50-60Hz)
Operating temp.: -10 ~ +50℃
Operating humidity: less than 95%RH
Output in clean air: -35 ~ +35mV

  • Model Number: NAP-56A
  • Data Sheet: Date Sheet File
Quantity:
- +

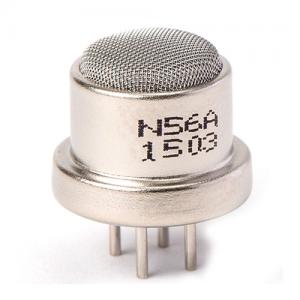

  • Higher Temperature Resistivity Flammable Gas Sensors
Mouse over image to zoom
Share:

Product Specification

NAP-56A is not made with thermoplastics to achieve a higher temperature resistivity. The pin locations and dimensions are compatible to NAP-55A for the convenience of current users of Nemoto NAP-55A. The gas sensitivity is better than NAP-55A by about 15%. Users are to pay attention to this higher gas sensitivity upon calibration.


* Target gases & concentration

gases

Detection range

Methane

CH4

0.05-5% (0.05-2%)

Ethane

C2H6

0.05-3.2% (0.05-1.5%)

Hydrogen

H2

0.05-4% (0.05-1.5%)

Hydro-carbons

CnH2n+2

1-100%LEL (1-50%LEL)

( ) is a detection range in high accuracy


* Ratings

Item

 Ratings

Supply voltage

DC 2.5±0.25V

AC 2.5±0.25V(RMS 50-60Hz)

Current (2.5V applied)

DC 150 - 170mA

AC 150 - 170mA(RMS 50-60Hz)

Ambient temperature

In operation -10 ~ +50℃

In storage -10 ~ +50℃

Ambient humidity

In operation : less than 95%RH

In storage : less than 99%RH

(without dew condensation)

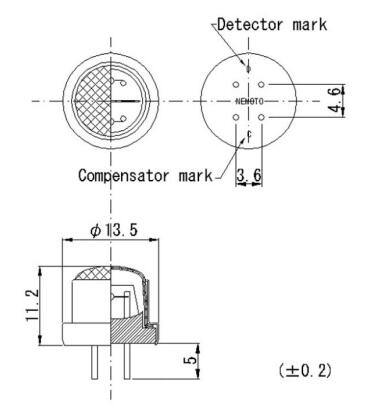

Structure & appearance of NAP-56A

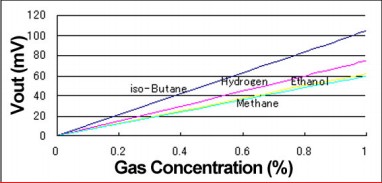

* Gas sensitivity characteristics

Gases and concentration

Output values

Output in clean air

-35~ +35mV

Methane 3,000ppm

15~ 23mV

Iso-butane 1,400ppm

12~ 18mV

Hydrogen 1,400ppm

10~ 17mV
