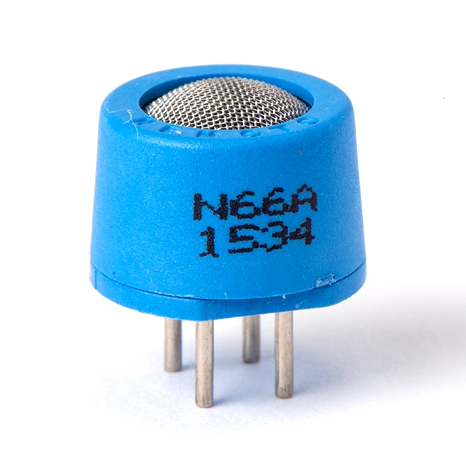

Flammable Gas Sensors Used for Gas Setectors and Leak Testers - NAP-66A

Supply Voltage: DC 2.0 ± 0.2V; AC 2.0 ± 0.2V (r.m.s. 50~60Hz)
Current (When 2.0V is applied): DC 140 ~ 160mA; AC 140 ~ 160mA (r.m.s. 50~60Hz)
Ambient Temperature In operation -10 ~ +50℃
Ambient humidity In operation 95％RH or less
Output in clean air: -35 ~ +35mV

  • Model Number: NAP-66A
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Flammable Gas Sensors Used for Gas Setectors and Leak Testers
Mouse over image to zoom
Share:

Product Specification

NAP-66A is mainly used for gas detectors and leak testers. NAP-66A is a half in height and needs a half in power consumption compared to existing sensor so that thinner and lighter-weight detectors can be produced. The following are the basic characteristics but it is recommended to refer to the individual user’s manual for further information.


* Target gases and concentration

Gases

Detection range

Propane

C3H8

0.03~ 2.2% (0.03~ 1%)

Iso-butane

Iso-C4H10

0.03~ 1.8% (0.03~ 0.8%)

Hydrogen

H2

0.05~ 4%  (0.05~ 1.5%)

Ethanol

C2H5OH

0.05~ 3.2% (0.05~ 1.5%)

Hydrocarbons

 CnH2n+2

1~100% LEL (1~50%LEL)

( ) is a detection range in high accuracy


* Ratings

Items
 Ratings
Supply Voltage

DC 2.0 ± 0.2V

AC 2.0 ± 0.2V (r.m.s. 50~60Hz)

Current (When 2.0V is applied)

DC 140 ~ 160mA

AC 140 ~ 160mA (r.m.s. 50~60Hz)

Ambient Temperature

In operation -10 ~ +50℃

In storage -10 ~ +50℃

Ambient humidity

In operation 95％RH or less

In storage 99％RH or less (No dew condensation)


* Gas sensitivity characteristics

Gases and concentration
 Output voltage
Output in clean air
 -35 ~ +35mV
Iso-butane 1400ppm
 10 ~ 15mV
Hydrogen 1400ppm
 7 ~ 12mV
Ethanol 1400ppm
 Less than 11mV

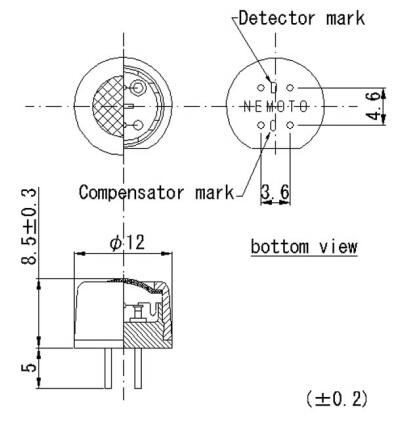

Structure & appearance of NAP-66A
