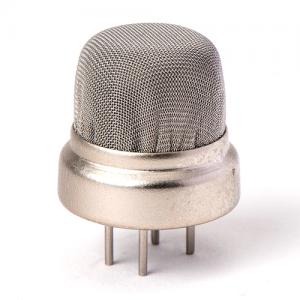

Flammable Gas Sensors for Industrial Applications - NAP-100AM

Supply voltage: 2.6V
Current: 160~ 180mA
Ambient temp. & humidity in operation: -10~ +50℃; 95%RH or less
Applications: Universal type
Target gases: Flammable
Detection range in high accuracy: 1~ 50%LEL

Model Number: NAP-100AM
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

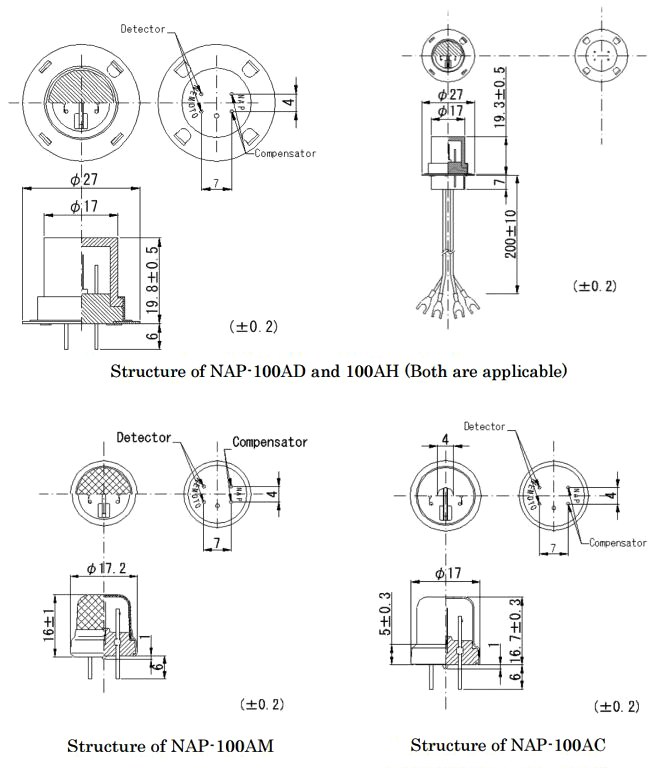

NAP-100 series are flammable gas sensors?for industrial applications, and 4 types are provided for users’ choice. For detailed technical information, please refer to the individual user’s manuals.

* Ratings and gas sensitivity

Items	NAP-100AM	NAP-100AC	NAP-100AD	NAP-100AH
Supply voltage	2.6V	2.6V	2.6V	1.6V
Current	160~?180mA	160~?180mA	160~?180mA	120~?140mA
Ambient temp. & humidity in operation	-10~?+50℃ 95%RH or less	-10~?+50℃ 95%RH or less	260℃?or less 95%RH or less	260℃?or less 95%RH or less
Ambient temp. & humidity in storage	-20~?+60℃ 99%RH or less	-20~?+60℃ 99%RH or less	-20~?+60℃ 99%RH or less	-20~?+60℃ 99%RH or less
Applications	Universal type	For higher conc.	For high temp.	For H2?only
Target gases	Flammable	Flammable	Flammable	H2、CO
Detection range in high?accuracy	1~?50%LEL	3~?100%LEL	1~?50%LEL	1~?50%LEL
Detection range in high?accuracy	1~?50%LEL	3~?100%LEL	1~?50%LEL	1~?50%LEL
