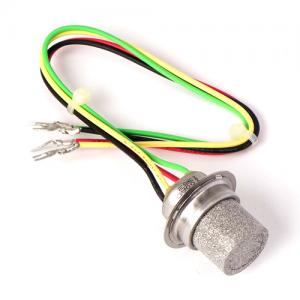

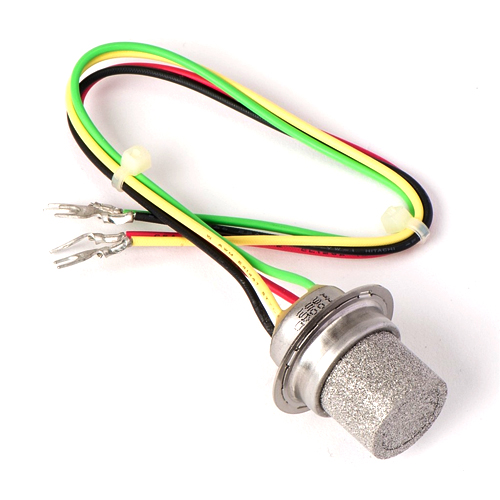

Flammable Gas Sensors for Industrial Applications - NAP-100AH
Supply voltage: 1.6V
Current: 120~ 140mA
Ambient temp. & humidity in operation: 260℃ or less; 95%RH or less
Applications: For H2 only
Target gases: H2、CO
Detection range in high accuracy: 1~ 50%LEL
- Model Number: NAP-100AH
- Data Sheet:
- Quantity:
- - +
Product Specification

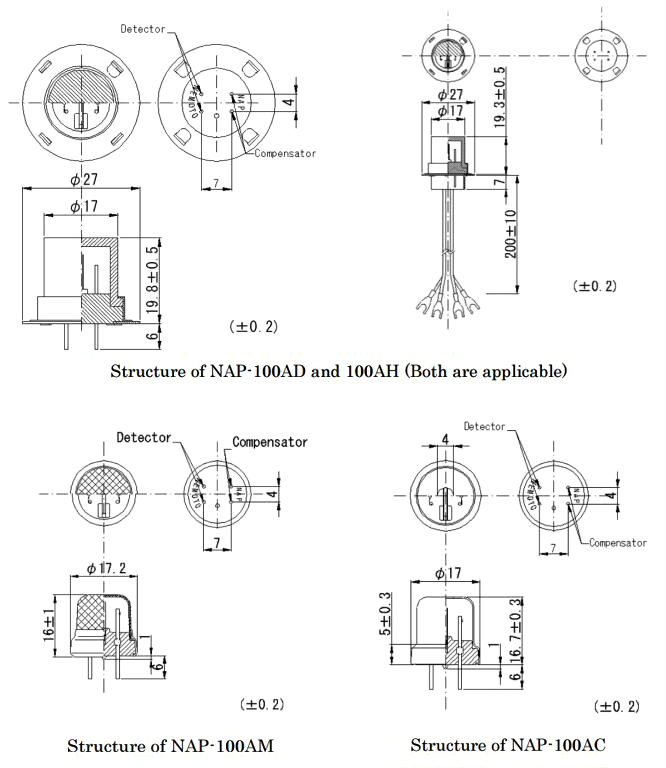

NAP-100 series are flammable gas sensors?for industrial applications, and 4 types are provided for users’ choice. For detailed technical information, please refer to the individual user’s manuals.
* Ratings and gas sensitivity
|
Items |
NAP-100AM |
NAP-100AC |
NAP-100AD |
NAP-100AH |
|
Supply voltage |
2.6V |
2.6V |
2.6V |
1.6V |
|
Current |
160~?180mA |
160~?180mA |
160~?180mA |
120~?140mA |
|
Ambient temp. & humidity in operation |
-10~?+50℃
95%RH or less |
-10~?+50℃
95%RH or less |
260℃?or less
95%RH or less |
260℃?or less
95%RH or less |
|
Ambient temp. &
humidity in storage |
-20~?+60℃
99%RH or less |
-20~?+60℃
99%RH or less |
-20~?+60℃
99%RH or less |
-20~?+60℃
99%RH or less |
|
Applications |
Universal type |
For higher conc. |
For high temp. |
For H2?only |
|
Target gases |
Flammable |
Flammable |
Flammable |
H2、CO |
|
Detection range in high?accuracy |
1~?50%LEL |
3~?100%LEL |
1~?50%LEL |
1~?50%LEL |
